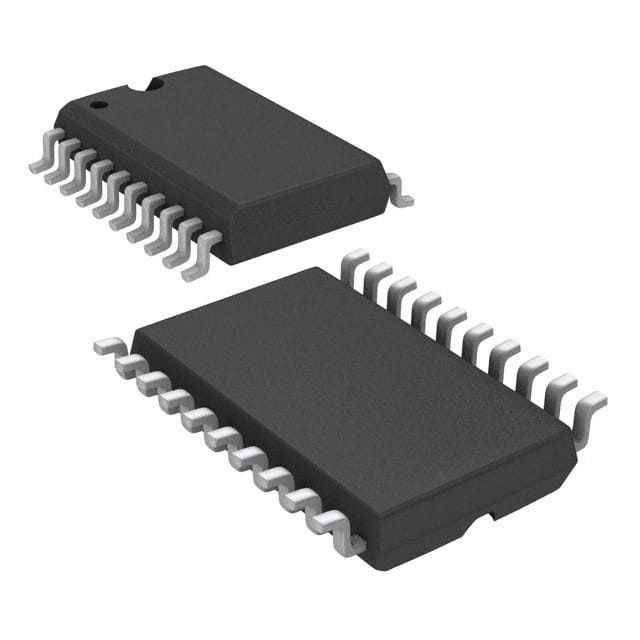

TLV1570CDW
IC ADC 10BIT SAR 20SOICManufacturer: Texas Instruments
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Texas Instruments TLV1570CDW is a 10-bit successive approximation register (SAR) analog-to-digital converter (ADC). This device features 8 single-ended analog inputs multiplexed to a single 10-bit SAR ADC, achieving a sampling rate of 1.25 MSPS. The TLV1570CDW supports both external and internal voltage references and offers a flexible data interface compatible with SPI protocols. It operates across a single supply voltage range of 2.7V to 5.5V for both analog and digital domains. The component is housed in a 20-SOIC (0.295", 7.50mm width) surface-mount package. This ADC is suitable for applications in industrial automation, medical instrumentation, and data acquisition systems requiring precise analog-to-digital conversion.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 20-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 10 |
| Configuration | MUX-ADC |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Sampling Rate (Per Second) | 1.25M |
| Input Type | Single Ended |
| Number of Inputs | 8 |
| Supplier Device Package | 20-SOIC |
| Architecture | SAR |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
