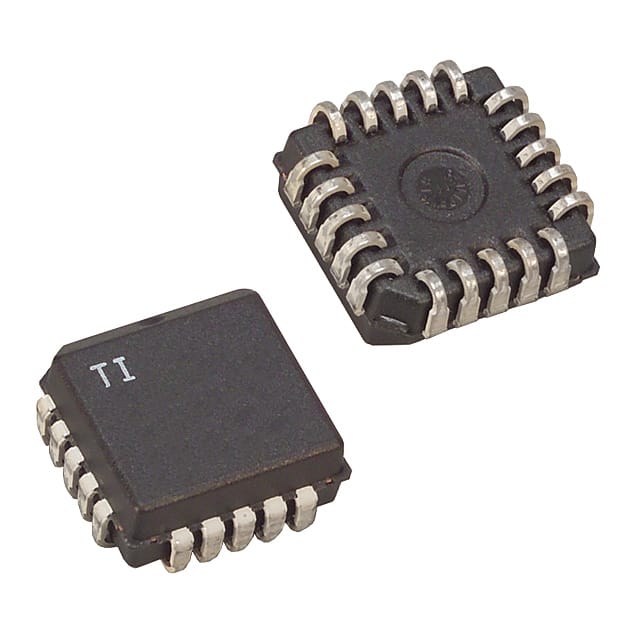

TLC541IFN
IC ADC 8BIT SAR 20PLCCManufacturer: Texas Instruments
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Texas Instruments TLC541IFN is an 8-bit, 11-input Analog to Digital Converter (ADC) featuring a successive approximation (SAR) architecture. This component offers a single ADC channel with selectable address capabilities and a multiplexer with sample-and-hold circuitry. The data interface utilizes the SPI protocol for efficient communication. Designed for surface-mount applications, it is housed in a 20-PLCC (9x9) package. The TLC541IFN operates on analog and digital supply voltages of 5V and supports both external and internal voltage references. With a sampling rate of up to 40kSPS and an operating temperature range of -40°C to 85°C, this ADC is suitable for a variety of industrial and consumer electronics applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Selectable Address |
| Packaging | Tube |
| Package / Case | 20-LCC (J-Lead) |
| Mounting Type | Surface Mount |
| Number of Bits | 8 |
| Configuration | MUX-S/H-ADC |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 40k |
| Input Type | Single Ended |
| Number of Inputs | 11 |
| Supplier Device Package | 20-PLCC (9x9) |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
