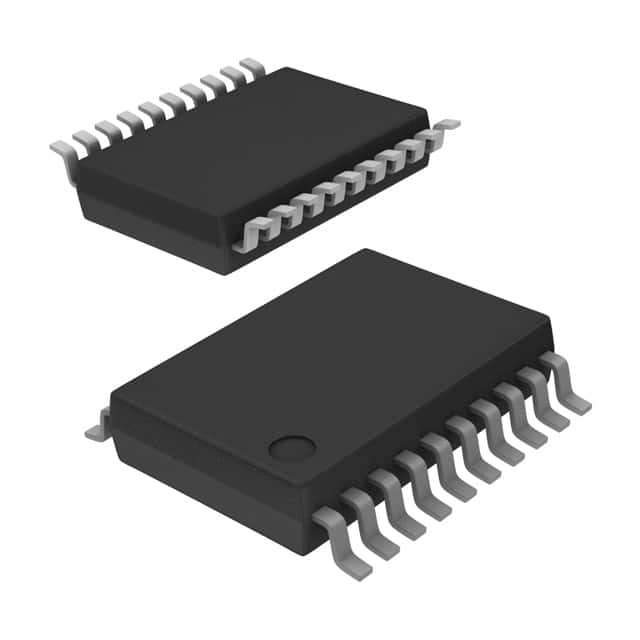

TLC2543MDBREP
IC ADC 12BIT SAR 20SSOPManufacturer: Texas Instruments
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Texas Instruments TLC2543MDBREP is a 12-bit Analog-to-Digital Converter (ADC) featuring a successive approximation register (SAR) architecture. This component offers 11 single-ended analog inputs and a single analog-to-digital converter. It supports an SPI data interface for efficient communication. The TLC2543MDBREP operates with analog and digital supply voltages of 5V and boasts a sampling rate of up to 66kSPS. Designed for precision, it utilizes an external reference voltage and a 1:1 S/H:ADC ratio. The device is housed in a 20-SSOP package suitable for surface mounting. Its wide operating temperature range of -55°C to 125°C makes it suitable for applications in industrial control, automotive systems, and data acquisition. The component is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-SSOP (0.209"", 5.30mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | MUX-S/H-ADC |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 66k |
| Input Type | Single Ended |
| Number of Inputs | 11 |
| Supplier Device Package | 20-SSOP |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
