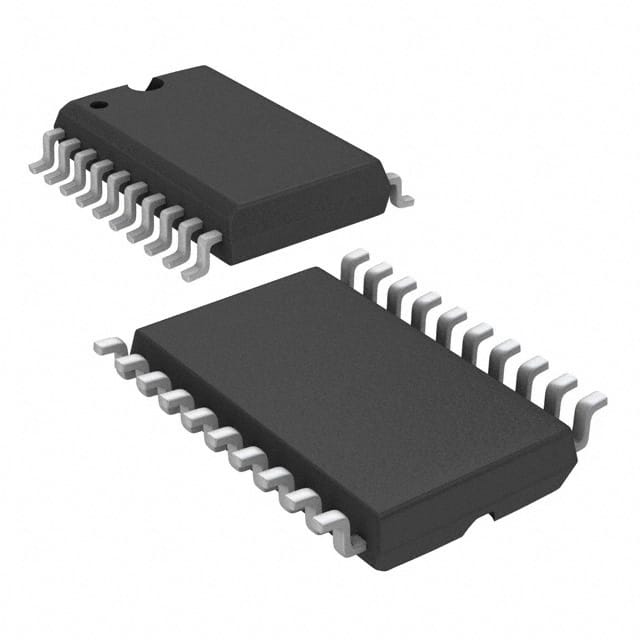

TLC2543CDW
IC ADC 12BIT SAR 20SOICManufacturer: Texas Instruments
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Texas Instruments TLC2543CDW is a 12-bit Analog-to-Digital Converter (ADC) featuring a Successive Approximation Register (SAR) architecture. This component offers 11 single-ended inputs multiplexed to a single 12-bit SAR core. The data is provided via a serial peripheral interface (SPI). The TLC2543CDW operates with analog and digital supply voltages of 5V and boasts a sampling rate of up to 66kSPS. It is housed in a 20-SOIC (0.295", 7.50mm Width) surface-mount package. This device is suitable for applications in industrial control, instrumentation, and data acquisition systems. The operating temperature range is 0°C to 70°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 20-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | MUX-S/H-ADC |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 66k |
| Input Type | Single Ended |
| Number of Inputs | 11 |
| Supplier Device Package | 20-SOIC |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
