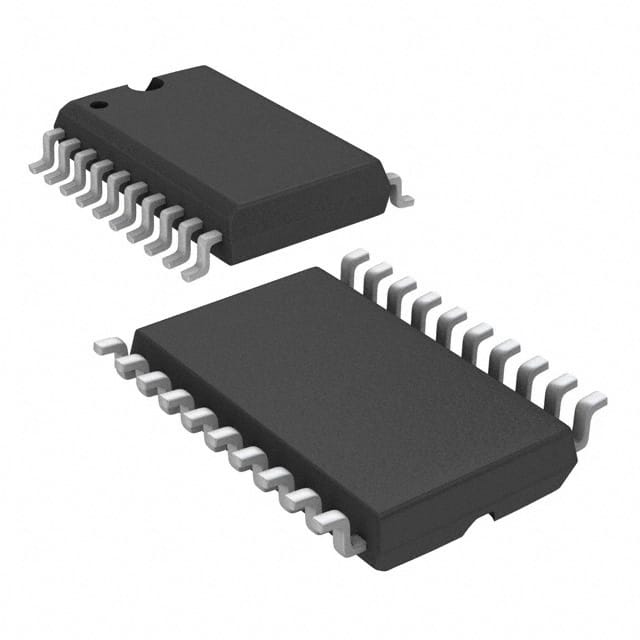

TLC1543CDWR
IC ADC 10BIT SAR 20SOICManufacturer: Texas Instruments
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Texas Instruments TLC1543CDWR is a 10-bit Analog-to-Digital Converter (ADC) featuring a Successive Approximation Register (SAR) architecture. This component offers 11 single-ended analog input channels multiplexed to a single ADC core. The device supports an SPI data interface for efficient communication. Key specifications include a sampling rate of up to 38kSPS and the ability to utilize an external voltage reference. The TLC1543CDWR is housed in a 20-SOIC (0.295", 7.50mm Width) surface-mount package. It operates within an ambient temperature range of 0°C to 70°C and is supplied on tape and reel. This ADC finds application in various industrial automation, consumer electronics, and data acquisition systems requiring cost-effective analog-to-digital conversion.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Selectable Address |
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 10 |
| Configuration | MUX-S/H-ADC |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 38k |
| Input Type | Single Ended |
| Number of Inputs | 11 |
| Supplier Device Package | 20-SOIC |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
