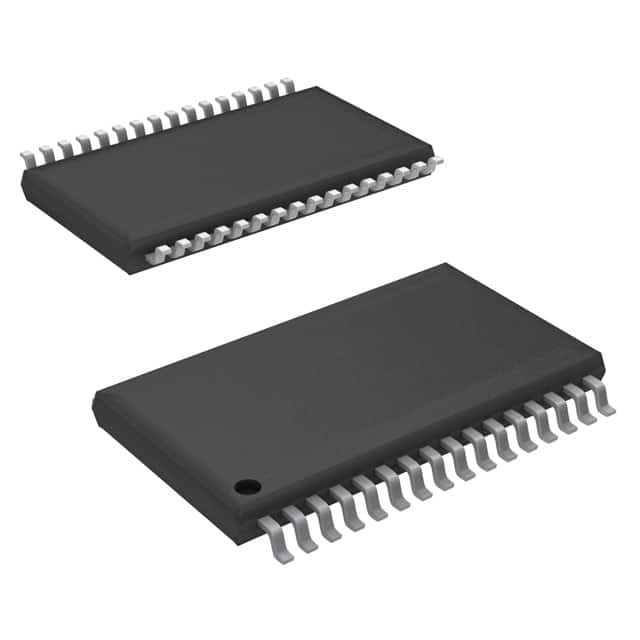

THS12082CDAR
IC ADC 12BIT PIPELINED 32TSSOPManufacturer: Texas Instruments
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Texas Instruments THS12082CDAR is a 12-bit, 8 MSPS pipelined Analog-to-Digital Converter (ADC). This device features a dual-channel input with simultaneous sampling capabilities, supporting both differential and single-ended input types. The THS12082CDAR offers a flexible configuration with an integrated Sample-and-Hold (S/H) multiplexer and ADC. Its data interface is parallel, and it allows for both internal and external reference types. The ADC operates with an analog supply voltage of 5V and a digital supply range of 3V to 5.25V. Packaged in a 32-TSSOP, this component is suitable for surface mount applications. The THS12082CDAR is commonly utilized in applications such as medical imaging, instrumentation, and high-speed data acquisition systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Tape & Reel (TR) |
| Package / Case | 32-TSSOP (0.240"", 6.10mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | S/H-MUX-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 3V ~ 5.25V |
| Sampling Rate (Per Second) | 8M |
| Input Type | Differential, Single Ended |
| Number of Inputs | 1, 2 |
| Supplier Device Package | 32-TSSOP |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 2:1 |
| Number of A/D Converters | 1 |
