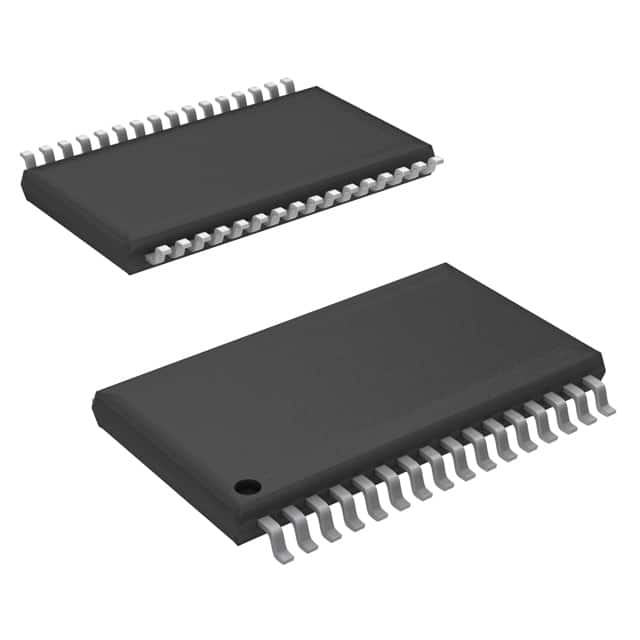

THS1206IDAR
IC ADC 12BIT PIPELINED 32TSSOPManufacturer: Texas Instruments
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Texas Instruments THS1206IDAR is a 12-bit, 6 MSPS pipelined analog-to-digital converter. This device offers selectable 2-channel or 4-channel input configurations with simultaneous sampling capabilities. Featuring a parallel data interface and a 32-TSSOP package, the THS1206IDAR supports both external and internal voltage references. Its architecture is designed for high-speed signal acquisition, making it suitable for applications in medical imaging, professional audio, and telecommunications. The component operates with an analog supply voltage of 5V and a digital supply range of 3V to 5.25V, with an operating temperature range of -40°C to 85°C. The S/H:ADC ratio is 4:1.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Tape & Reel (TR) |
| Package / Case | 32-TSSOP (0.240"", 6.10mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | S/H-MUX-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 3V ~ 5.25V |
| Sampling Rate (Per Second) | 6M |
| Input Type | Differential, Single Ended |
| Number of Inputs | 2, 4 |
| Supplier Device Package | 32-TSSOP |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 4:1 |
| Number of A/D Converters | 1 |
