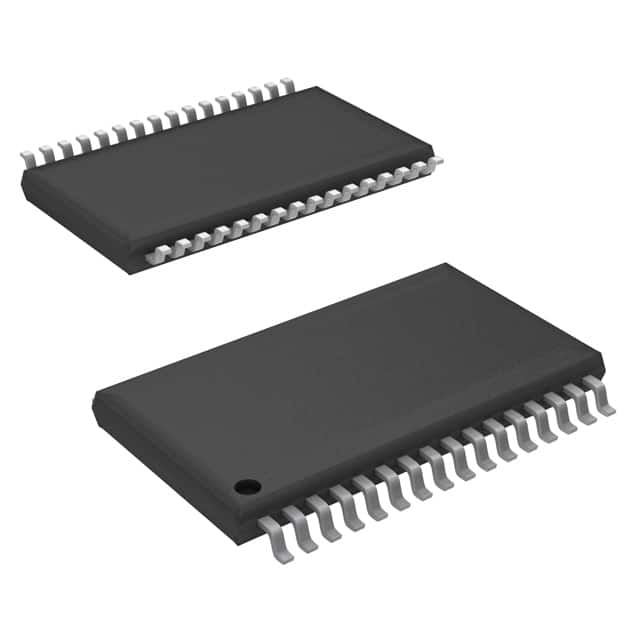

THS1206CDAR
IC ADC 12BIT PIPELINED 32TSSOPManufacturer: Texas Instruments
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Texas Instruments THS1206CDAR is a 12-bit pipelined Analog-to-Digital Converter (ADC) designed for high-speed data acquisition. This component features a single ADC with a sampling rate of up to 6 MSPS, configurable with 2 or 4 inputs. The pipelined architecture, coupled with simultaneous sampling capabilities, ensures precise conversion of analog signals. It offers flexible input types, supporting both differential and single-ended signals. The THS1206CDAR utilizes a parallel data interface for efficient data transfer. Available in a 32-TSSOP package for surface mounting, this device operates with analog supply voltages of 5V and digital supply voltages ranging from 3V to 5.25V. It finds application in industries such as medical imaging and test and measurement equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Tape & Reel (TR) |
| Package / Case | 32-TSSOP (0.240"", 6.10mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | S/H-MUX-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 3V ~ 5.25V |
| Sampling Rate (Per Second) | 6M |
| Input Type | Differential, Single Ended |
| Number of Inputs | 2, 4 |
| Supplier Device Package | 32-TSSOP |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 4:1 |
| Number of A/D Converters | 1 |
