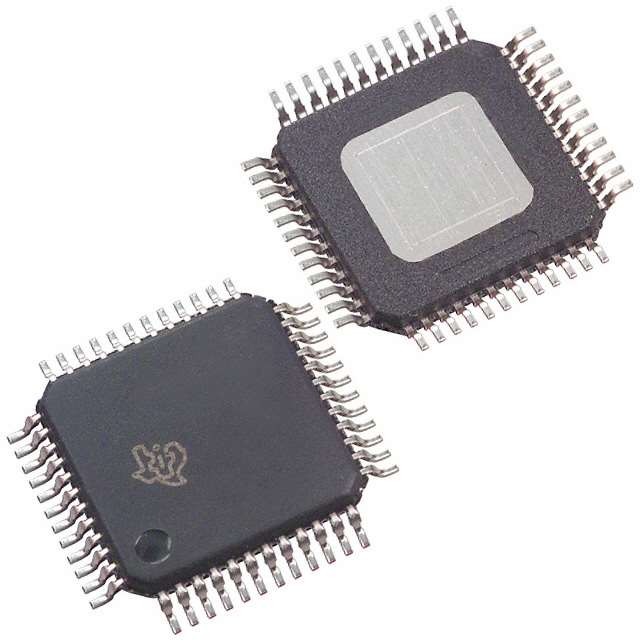

THS1060CPHP
IC ADC 10BIT PIPELINED 48HTQFPManufacturer: Texas Instruments
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Texas Instruments THS1060CPHP is a 10-bit pipelined Analog-to-Digital Converter (ADC) featuring a 60 MSPS sampling rate. This device offers a single-ended input with a configurable Ratio-S/H:ADC of 1:1. The THS1060CPHP utilizes an internal or external reference and provides a parallel data interface for output. It is packaged in a 48-HTQFP (7x7) surface-mount configuration. Operating with analog and digital supply voltages of 5V, this component is suitable for applications requiring high-speed data acquisition in areas such as medical imaging and high-performance test and measurement equipment. The operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Package / Case | 48-PowerTQFP |
| Mounting Type | Surface Mount |
| Number of Bits | 10 |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 60M |
| Input Type | Differential |
| Number of Inputs | 1 |
| Supplier Device Package | 48-HTQFP (7x7) |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
