LM97937RMER
IC ADC 14BIT PIPELINED 56WQFNManufacturer: Texas Instruments
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More

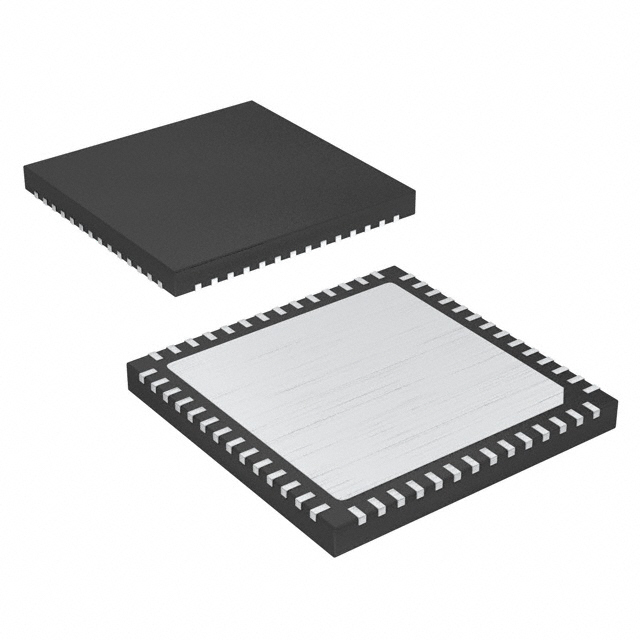

Texas Instruments LM97937RMER is a 14-bit, 2-channel pipelined Analog-to-Digital Converter (ADC) with a maximum sampling rate of 370 MSPS. This device features simultaneous sampling, a differential input type, and an internal reference. The LM97937RMER utilizes a JESD204B data interface for high-speed serial communication. It is supplied in a 56-WQFN (8x8) package suitable for surface mounting and operates within a temperature range of -40°C to 85°C. Analog supply voltage options include 1.15V to 1.25V, 1.7V to 1.9V, and 2.85V to 3.45V, with a digital supply voltage of 1.15V to 1.25V. This component is commonly employed in demanding applications within the telecommunications, medical imaging, and test and measurement industries.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Tape & Reel (TR) |
| Package / Case | 56-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Configuration | ADC |
| Data Interface | JESD204B |
| Reference Type | Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 1.15V ~ 1.25V, 1.7V ~ 1.9V, 2.85V ~ 3.45V |
| Voltage - Supply, Digital | 1.15V ~ 1.25V |
| Sampling Rate (Per Second) | 370M |
| Input Type | Differential |
| Number of Inputs | 2 |
| Supplier Device Package | 56-WQFN (8x8) |
| Architecture | Pipelined |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 2 |
