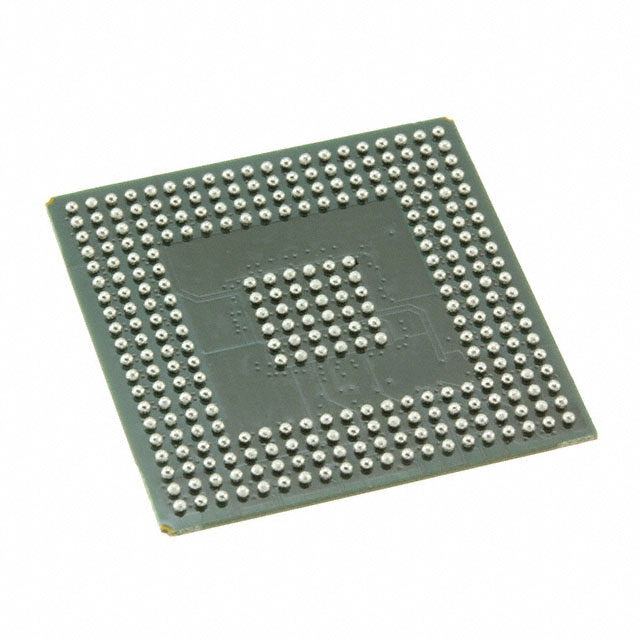

LM97600CIUT/NOPB
IC ADC 7.6BIT FOLD INTERP 292BGAManufacturer: Texas Instruments
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Texas Instruments LM97600CIUT-NOPB is a 7.6-bit analog-to-digital converter featuring a folding interpolating architecture. This device supports simultaneous sampling across its four differential inputs. The LM97600CIUT-NOPB offers a high sampling rate of 5 Giga-samples per second and utilizes an LVDS serial data interface for efficient data transfer. Designed for surface mounting, it is supplied in a 292-BGA (27x27) package and operates within an industrial temperature range of -40°C to 85°C. Analog supply voltage ranges from 1.14V to 1.26V, with digital supply voltage from 2.375V to 2.625V. This component is suitable for demanding applications in areas such as high-speed data acquisition and advanced signal processing.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Bulk |
| Package / Case | 292-BBGA |
| Mounting Type | Surface Mount |
| Number of Bits | 7.6 |
| Configuration | MUX-S/H-ADC |
| Data Interface | LVDS - Serial |
| Reference Type | Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 1.14V ~ 1.26V |
| Voltage - Supply, Digital | 2.375V ~ 2.625V |
| Sampling Rate (Per Second) | 5G |
| Input Type | Differential |
| Number of Inputs | 4 |
| Supplier Device Package | 292-BGA (27x27) |
| Architecture | Folding Interpolating |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 4 |
