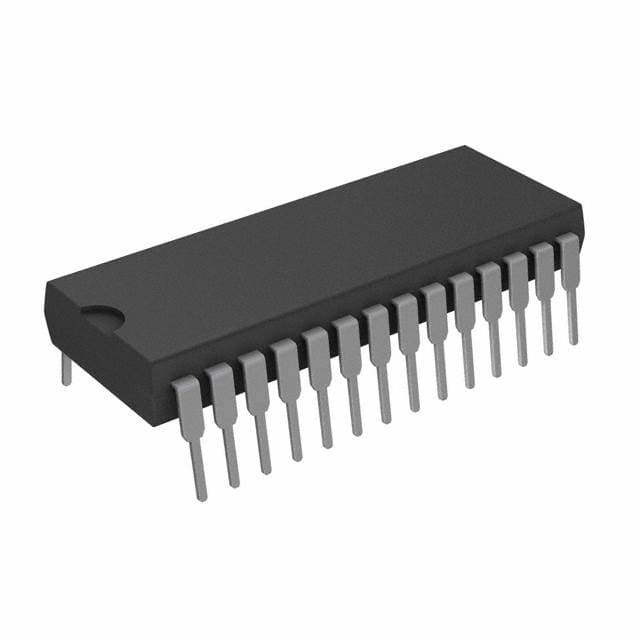

DF1760P
IC ADC 20BIT SIGMA-DELTA 28DIPManufacturer: Texas Instruments
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Texas Instruments DF1760P is a 20-bit, 2-input sigma-delta analog-to-digital converter. This component features a single-ended input configuration and operates with analog and digital supply voltages of 5V. The DF1760P utilizes an SPI interface for data transfer and offers a sampling rate of up to 48kSPS. Packaged in a 28-PDIP through-hole mount, it is suitable for applications in industrial automation and audio processing systems requiring high-resolution signal conversion within its 0°C to 70°C operating temperature range.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TubeDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 28-DIP (0.600"", 15.24mm) |
| Mounting Type | Through Hole |
| Number of Bits | 20 |
| Configuration | ADC |
| Data Interface | SPI |
| Reference Type | - |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 48k |
| Input Type | Single Ended |
| Number of Inputs | 2 |
| Supplier Device Package | 28-PDIP |
| Architecture | Sigma-Delta |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
