DDC232CGXGR

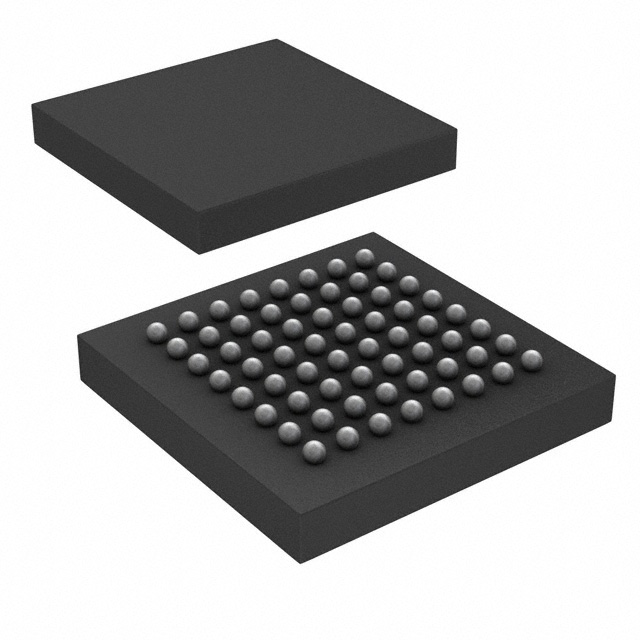

IC ADC 20BIT SIGMA-DELTA 64NFBGAManufacturer: Texas Instruments
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Texas Instruments DDC232CGXGR is a 20-bit, 32-channel analog-to-digital converter (ADC) featuring a sigma-delta architecture. This component is designed for precise signal acquisition, offering 16 internal sigma-delta converters for simultaneous sampling. The DDC232CGXGR supports external voltage references and operates with analog supply voltages of 5V and digital supply voltages ranging from 2.7V to 5.25V. Data is transferred via an SPI interface. Packaged in a 64-LFBGA (8x8) in tape and reel, this device is suitable for surface mount applications. Its high resolution and multiple input channels make it ideal for measurement and control systems in industrial automation, medical instrumentation, and scientific data acquisition. The operating temperature range is 0°C to 70°C.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Tape & Reel (TR) |
| Package / Case | 64-LFBGA |
| Mounting Type | Surface Mount |
| Number of Bits | 20 |
| Configuration | ADC |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Sampling Rate (Per Second) | 6k |
| Input Type | Single Ended |
| Number of Inputs | 32 |
| Supplier Device Package | 64-NFBGA (8x8) |
| Architecture | Sigma-Delta |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 16 |
