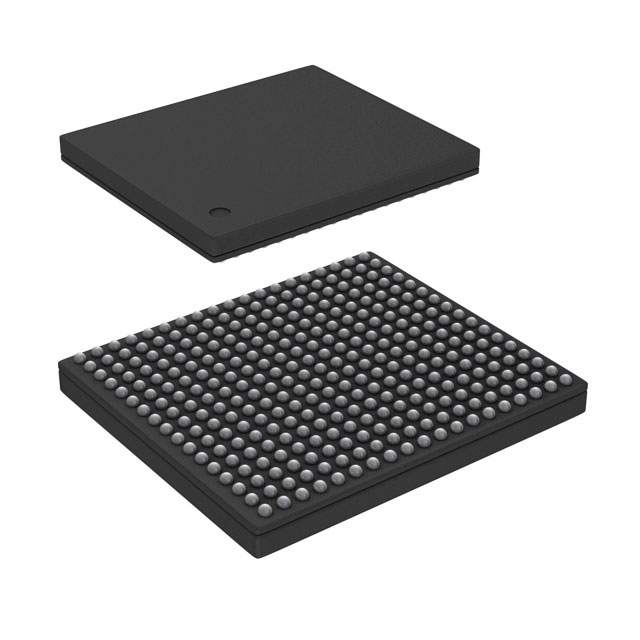

DDC2256AZZF
IC ADC 24BIT SIG-DELTA 323NFBGAManufacturer: Texas Instruments
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
24 Bit Analog to Digital Converter 256 Input 64 Sigma-Delta 323-NFBGA (16x14)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Tray |
| Package / Case | 323-LFBGA |
| Mounting Type | Surface Mount |
| Number of Bits | 24 |
| Configuration | DSI-ADC |
| Data Interface | LVDS - Serial, Serial |
| Reference Type | External |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | ±2.5V, 1.8V |
| Voltage - Supply, Digital | 1.8V |
| Sampling Rate (Per Second) | 17k |
| Input Type | Single Ended |
| Number of Inputs | 256 |
| Supplier Device Package | 323-NFBGA (16x14) |
| Architecture | Sigma-Delta |
| Ratio - S/H:ADC | 4:1 |
| Number of A/D Converters | 64 |
Request a Quote
