DDC118IRTCTG4
IC ADC 20BIT SIGMA-DELTA 48VQFNManufacturer: Texas Instruments
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Texas Instruments DDC118IRTCTG4 is a 20-bit, 4-channel sigma-delta analog-to-digital converter (ADC) with 8 single-ended inputs. This device features simultaneous sampling and an SPI data interface. Designed for precision measurement applications, it operates with analog supply voltages of 5V and digital supply voltages ranging from 2.7V to 5.25V. The DDC118IRTCTG4 boasts a sampling rate of 3.125kS/s per channel and utilizes an external reference. Its 48-VQFN (7x7) package with an exposed pad is suitable for surface mount applications. This component is commonly found in industrial automation, medical instrumentation, and battery monitoring systems. It is supplied in a Tape & Reel (TR) package.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Tape & Reel (TR) |

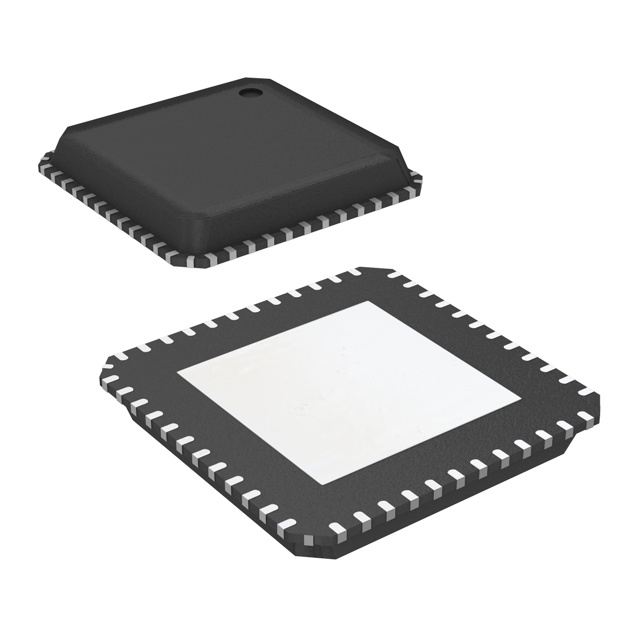

| Package / Case | 48-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 20 |
| Configuration | ADC |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Sampling Rate (Per Second) | 3.125k |
| Input Type | Single Ended |
| Number of Inputs | 8 |
| Supplier Device Package | 48-VQFN (7x7) |
| Architecture | Sigma-Delta |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 4 |
