AMC1203DUB
IC ADC 16BIT SIGMA-DELTA 8SOPManufacturer: Texas Instruments
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Texas Instruments AMC1203DUB is a 16-bit, single-channel sigma-delta analog-to-digital converter. This device features a differential input and an internal reference, operating with analog and digital supply voltages of 5V. With a sampling rate of 40kSPS, it is designed for applications requiring high precision conversion. The AMC1203DUB utilizes a sigma-delta architecture and communicates via an SPI interface. Its 8-SOP (Surface Mount Device, Gull Wing) package is suitable for surface mounting. This component finds application in industrial automation, motor control, and power monitoring systems where accurate analog signal acquisition is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |

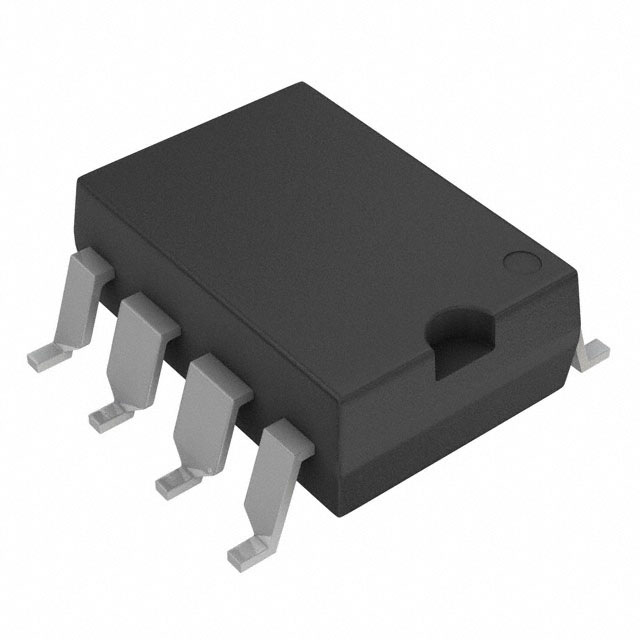

| Package / Case | 8-SMD, Gull Wing |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Configuration | ADC |
| Data Interface | SPI |
| Reference Type | Internal |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 40k |
| Input Type | Differential |
| Number of Inputs | 1 |
| Supplier Device Package | 8-SOP |
| Architecture | Sigma-Delta |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
