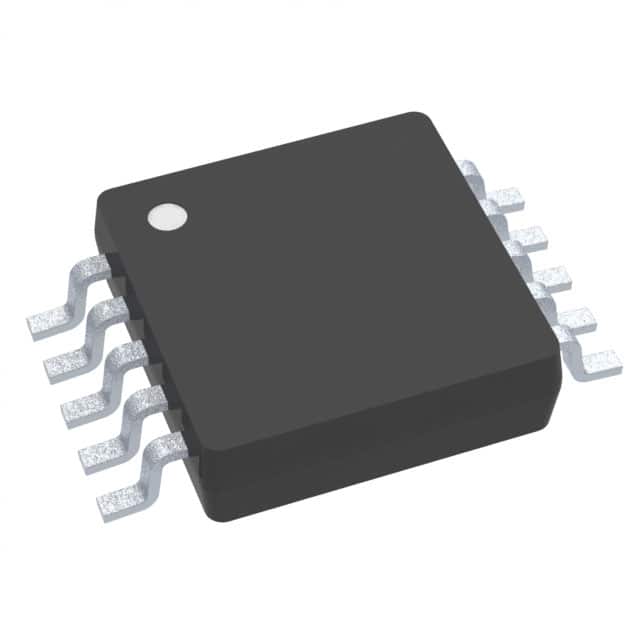

ADS8865IDGSR
IC ADC 16BIT SAR 10VSSOPManufacturer: Texas Instruments
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Texas Instruments ADS8865IDGSR is a 16-bit, single-channel, successive approximation register (SAR) analog-to-digital converter from the microPOWER™ series. This device features a sampling rate of 400 kSPS and supports a differential input type. Its architecture incorporates sample-and-hold functionality with a 1:1 S/H-to-ADC ratio. The ADS8865IDGSR utilizes an SPI data interface for communication. It operates within an analog supply voltage range of 2.7V to 3.6V and a digital supply voltage range of 1.65V to 3.6V. The component is housed in a 10-VSSOP package and is designed for surface mounting. Operating temperatures range from -40°C to 85°C. This component is suitable for applications in industrial automation and medical devices.
Additional Information
Series: microPOWER™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-TFSOP, 10-MSOP (0.118"", 3.00mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Configuration | S/H-ADC |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 3.6V |
| Voltage - Supply, Digital | 1.65V ~ 3.6V |
| Sampling Rate (Per Second) | 400K |
| Input Type | Differential |
| Number of Inputs | 1 |
| Supplier Device Package | 10-VSSOP |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
