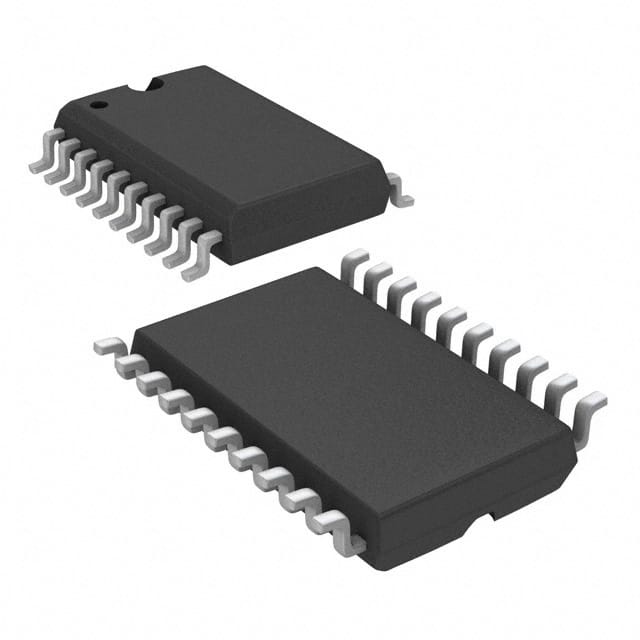

ADS8509IDWR
IC ADC 16BIT SAR 20SOICManufacturer: Texas Instruments
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Texas Instruments ADS8509IDWR is a 16-bit successive approximation register (SAR) analog-to-digital converter (ADC) designed for high-precision data acquisition. This component features a single-ended input and an integrated sample-and-hold (S/H) circuit, operating with a 1:1 S/H to ADC ratio. The ADC boasts a sampling rate of up to 250 kSPS and utilizes an SPI interface for digital communication. It supports both external and internal reference types, with analog and digital supply voltages of 5V. The ADS8509IDWR is housed in a 20-SOIC package, suitable for surface mount applications. This device finds application in industrial automation, medical instrumentation, and test and measurement equipment. The operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Configuration | S/H-ADC |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 250k |
| Input Type | Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 20-SOIC |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
