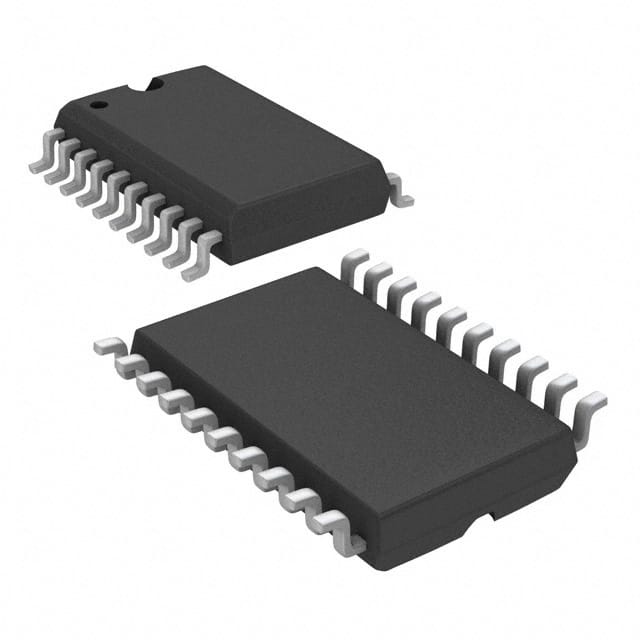

ADS8509IBDW
IC ADC 16BIT SAR 20SOICManufacturer: Texas Instruments
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Texas Instruments ADS8509IBDW is a 16-bit successive approximation register (SAR) analog-to-digital converter (ADC) designed for high-performance data acquisition. This single-input device operates with a sampling rate of 250 kSPS and features a 1:1 S/H to ADC ratio. The ADS8509IBDW supports both internal and external voltage references, providing flexibility in system design. Its serial peripheral interface (SPI) data interface allows for efficient communication with microcontrollers. The component is housed in a 20-SOIC package suitable for surface mounting and operates within an industrial temperature range of -40°C to 85°C. This ADC is well-suited for applications in industrial automation, test and measurement, and medical instrumentation where precise analog signal conversion is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 20-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Configuration | S/H-ADC |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 250k |
| Input Type | Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 20-SOIC |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
