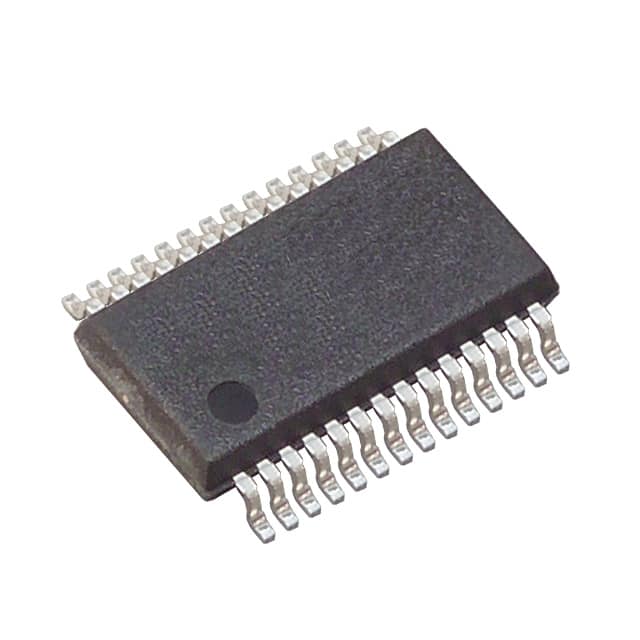

ADS8509IBDB
IC ADC 16BIT SAR 28SSOPManufacturer: Texas Instruments
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Texas Instruments ADS8509IBDB is a 16-bit successive approximation register (SAR) analog-to-digital converter (ADC) designed for high-performance data acquisition. This single-input device features a sampling rate of up to 250 kSPS and offers a flexible reference input, supporting both internal and external sources. The ADS8509IBDB operates with analog and digital supply voltages of 5V, and its configuration includes sample-and-hold (S/H) functionality. Data is communicated via a standard SPI interface, ensuring broad compatibility with various microcontrollers and digital signal processors. Packaged in a 28-SSOP (0.209", 5.30mm width) for surface mounting, this component is suitable for applications across industrial, medical, and test and measurement equipment where precise analog-to-digital conversion is critical. The operating temperature range is -40°C to 85°C, making it robust for demanding environments.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 28-SSOP (0.209"", 5.30mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Configuration | S/H-ADC |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 250k |
| Input Type | Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 28-SSOP |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
