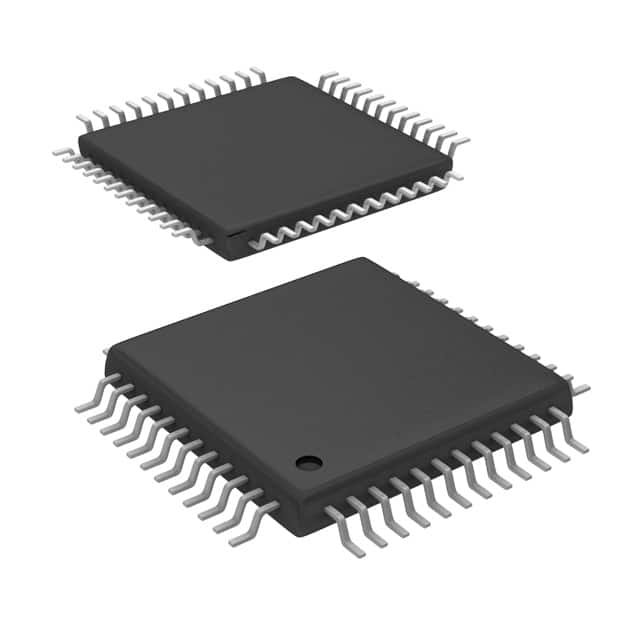

ADS8422IBPFBT
IC ADC 16BIT SAR 48TQFPManufacturer: Texas Instruments
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Texas Instruments' ADS8422IBPFBT is a 16-bit successive approximation register (SAR) analog-to-digital converter (ADC) from the microPOWER™ series. This component features a single differential input and a sampling rate of up to 4 MSPS. It offers flexible reference options with both internal and external reference capabilities. The device operates from an analog supply voltage of 5V and a digital supply voltage ranging from 2.7V to 5.25V, with an operating temperature range of -40°C to 85°C. The ADS8422IBPFBT is housed in a 48-TQFP (7x7) package, designed for surface mounting. Its parallel data interface facilitates straightforward integration into system designs. This ADC is suitable for applications in industrial automation, medical instrumentation, and high-speed data acquisition systems requiring precise analog-to-digital conversion.
Additional Information
Series: microPOWER™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-TQFP |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Sampling Rate (Per Second) | 4M |
| Input Type | Differential |
| Number of Inputs | 1 |
| Supplier Device Package | 48-TQFP (7x7) |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
