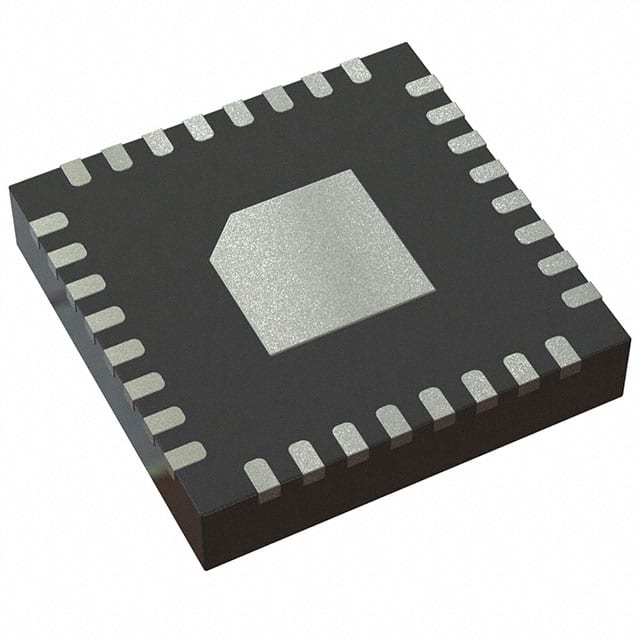

ADS8363SRHBR
IC ADC 16BIT SAR 32VQFNManufacturer: Texas Instruments
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Texas Instruments' ADS8363SRHBR is a 16-bit Analog-to-Digital Converter featuring a Successive Approximation Register (SAR) architecture. This device offers 2 ADCs with a sampling rate of up to 1 MSPS per channel. The configurable input multiplexer supports 4 single-ended or 8 pseudo-differential inputs. Key features include simultaneous sampling for two channels and a 1:1 ratio for Sample-and-Hold to ADC. The ADS8363SRHBR communicates via a SPI interface and supports both external and internal voltage references. It operates with analog supply voltages from 2.7V to 5.5V and digital supply voltages from 2.3V to 3.6V, or 5V. This component is housed in a 32-VQFN (5x5) package with an exposed pad, designed for surface mounting. The operating temperature range is -40°C to 125°C. It is commonly utilized in industrial automation, medical instrumentation, and test and measurement applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Tape & Reel (TR) |
| Package / Case | 32-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Configuration | MUX-S/H-ADC |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.3V ~ 3.6V, 5V |
| Sampling Rate (Per Second) | 1M |
| Input Type | Differential, Pseudo-Differential |
| Number of Inputs | 4, 8 |
| Supplier Device Package | 32-VQFN (5x5) |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 2 |
