ADS8332IRGER
IC ADC 16BIT SAR 24VQFNManufacturer: Texas Instruments
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Texas Instruments ADS8332IRGER is a 16-bit successive approximation register (SAR) Analog-to-Digital Converter (ADC). This component features 8 selectable input channels supporting pseudo-differential and single-ended configurations, with a 1:1 ratio for Sample-and-Hold to ADC. It operates with analog supply voltages from 2.7V to 3.6V and 5V, and digital supply voltages from 1.65V to 5.5V. The ADS8332IRGER offers a sampling rate of up to 500kSPS and utilizes an SPI data interface for communication. It is housed in a 24-VQFN (4x4) exposed pad package and is designed for surface mount applications. This device is suitable for use in industrial automation, medical instrumentation, and test and measurement equipment. The operating temperature range is from -40°C to 85°C, and it requires an external reference.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |

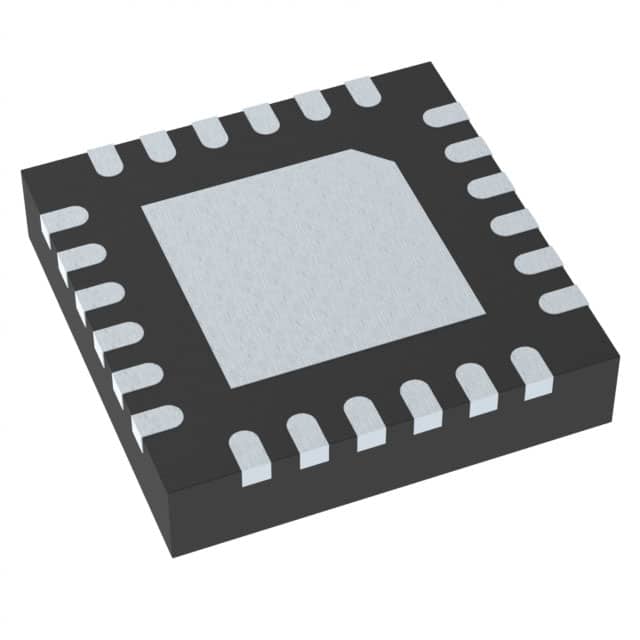

| Package / Case | 24-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Configuration | MUX-S/H-ADC |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 3.6V, 5V |
| Voltage - Supply, Digital | 1.65V ~ 5.5V |
| Sampling Rate (Per Second) | 500k |
| Input Type | Pseudo-Differential, Single Ended |
| Number of Inputs | 8 |
| Supplier Device Package | 24-VQFN (4x4) |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
