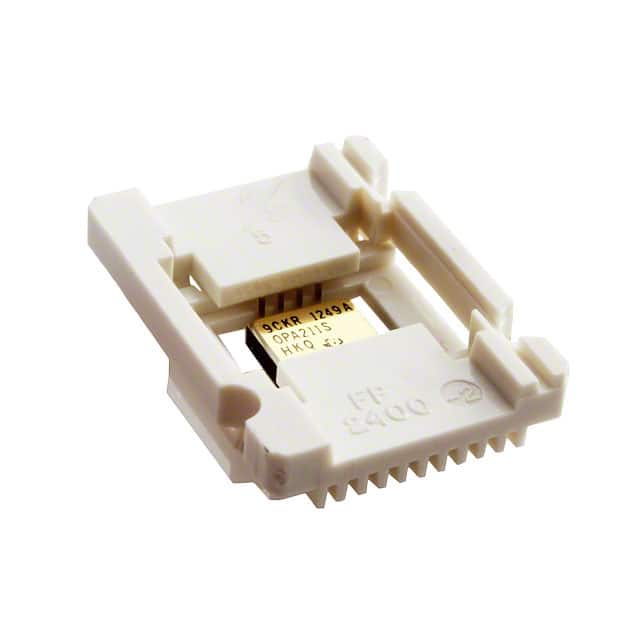

ADS8320SHKQ
IC ADC 16BIT SAR 8CFPManufacturer: Texas Instruments
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Texas Instruments' ADS8320SHKQ is a 16-bit, successive approximation register (SAR) analog-to-digital converter (ADC) from the microPOWER™ series. This component features a single pseudo-differential or single-ended input and a 1:1 sample-and-hold to ADC ratio. The data interface is SPI compatible, enabling straightforward integration into embedded systems. Operating with analog and digital supply voltages of 5V, it offers a sampling rate of up to 100 kSPS. The device is designed for operation across an extended temperature range of -55°C to 210°C, making it suitable for demanding applications such as industrial control, instrumentation, and medical equipment. The ADS8320SHKQ is supplied in an 8-pin CFP (Ceramic Flat Pack) package for surface mounting.
Additional Information
Series: microPOWER™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 8-CSOIC (0.220"", 5.65mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Configuration | S/H-ADC |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | -55°C ~ 210°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 100k |
| Input Type | Pseudo-Differential, Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 8-CFP |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
