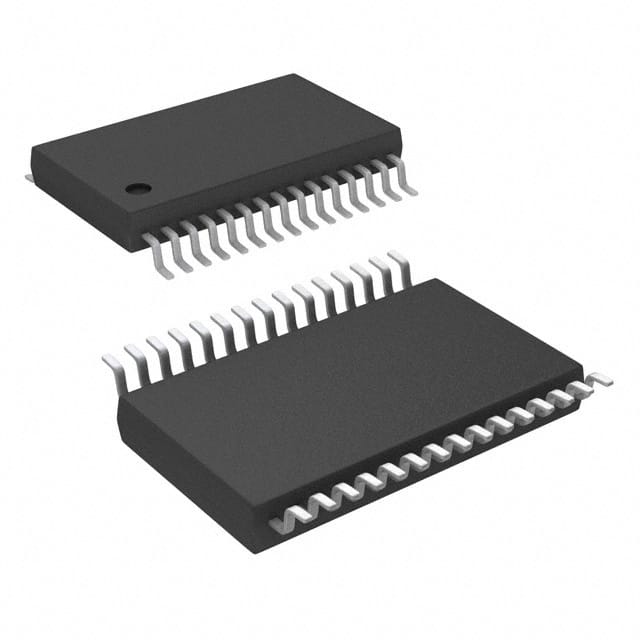

ADS7951QDBTRQ1
IC ADC 12BIT SAR 30TSSOPManufacturer: Texas Instruments
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Texas Instruments ADS7951QDBTRQ1 is a 12-bit, 8-channel Analog-to-Digital Converter (ADC) utilizing a Successive Approximation Register (SAR) architecture. This device features an integrated multiplexer and programmable gain amplifier (PGA), offering flexible input signal conditioning. The ADS7951QDBTRQ1 supports a sampling rate of up to 1 MSPS, with an SPI serial interface for data transfer. It operates with analog supply voltages from 2.7V to 5.25V and digital supply voltages from 1.7V to 5.25V. The component is qualified to AEC-Q100 standards and is housed in a 30-TSSOP package, suitable for surface mounting. This device finds application in automotive systems, industrial control, and data acquisition for high-precision measurement.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | PGA |
| Packaging | Tape & Reel (TR) |
| Package / Case | 30-TFSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | MUX-PGA-S/H-ADC |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply, Analog | 2.7V ~ 5.25V |
| Voltage - Supply, Digital | 1.7V ~ 5.25V |
| Sampling Rate (Per Second) | 1M |
| Input Type | Single Ended |
| Number of Inputs | 8 |
| Supplier Device Package | 30-TSSOP |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Grade | Automotive |
| Number of A/D Converters | 1 |
| Qualification | AEC-Q100 |
