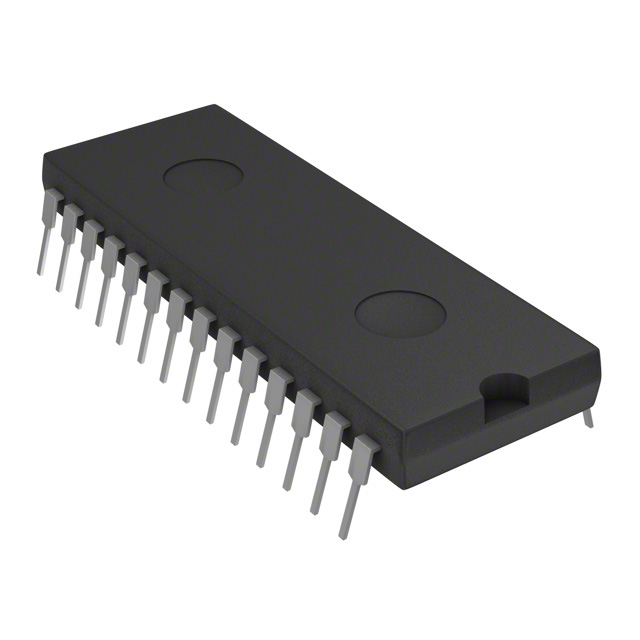

ADS7832BP
IC ADC 12BIT SAR 28DIPManufacturer: Texas Instruments
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Texas Instruments ADS7832BP is a 12-bit, 4-channel successive approximation analog-to-digital converter (ADC) packaged in a 28-pin Dual In-line Package (DIP). This component features a built-in sample-and-hold (S/H) circuit and an SPI serial data interface, offering a sampling rate of up to 117kSPS. The ADS7832BP supports selectable addressing and operates with analog and digital supply voltages of 3.3V or 5V. Its architecture is designed for efficient data conversion with a 1:1 S/H to ADC ratio. This device is suitable for applications in industrial automation, data acquisition systems, and instrumentation. The operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Features | Selectable Address |
| Packaging | Tube |
| Package / Case | 28-DIP (0.600"", 15.24mm) |
| Mounting Type | Through Hole |
| Number of Bits | 12 |
| Configuration | MUX-S/H-ADC |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 3.3V, 5V |
| Voltage - Supply, Digital | 3.3V, 5V |
| Sampling Rate (Per Second) | 117k |
| Input Type | Single Ended |
| Number of Inputs | 4 |
| Supplier Device Package | 28-DIP |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
