ADS7800AH

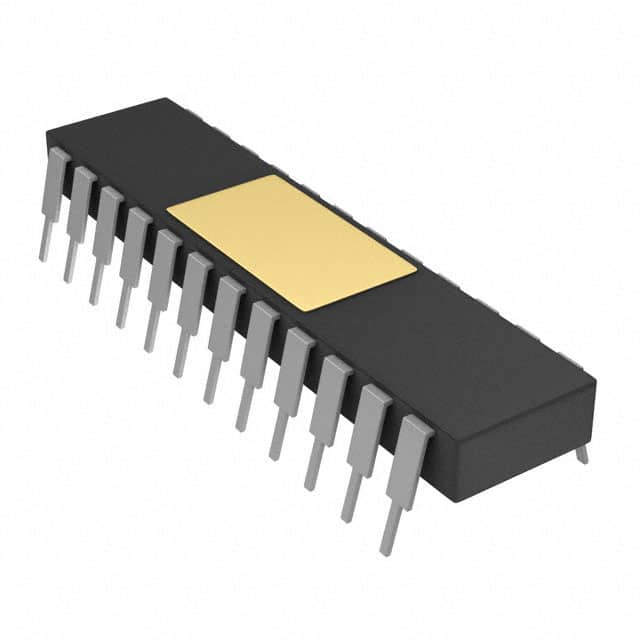

IC ADC 12BIT SAR 24CDIPManufacturer: Texas Instruments
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Texas Instruments ADS7800AH is a 12-bit successive approximation analog-to-digital converter (ADC). This component features a single-ended input with a 1:1 sample-and-hold to ADC ratio, enabling efficient signal acquisition. The device operates with analog supply voltages of 5V and a range of -11.4V to 16.5V, and a digital supply of 5V. It offers a sampling rate of up to 333kSPS and utilizes a parallel data interface for output. The ADS7800AH is housed in a 24-CDIP package with through-hole mounting. Its operating temperature range is -40°C to 85°C. This component is suitable for applications in industrial automation, medical instrumentation, and data acquisition systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 24-CDIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Number of Bits | 12 |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Reference Type | Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V, -11.4V ~ 16.5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 333k |
| Input Type | Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 24-CDIP |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
