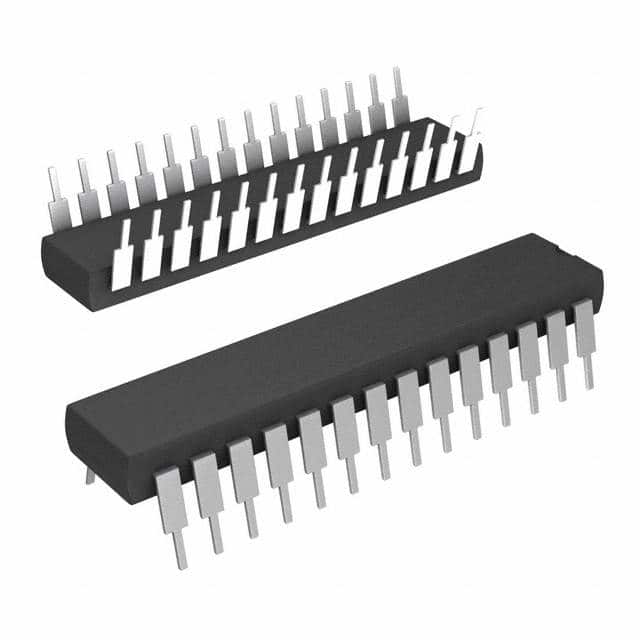

ADS774KEG4
IC ADC 12BIT SAR 28DIPManufacturer: Texas Instruments
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Texas Instruments ADS774KEG4 is a 12-bit Successive Approximation Register (SAR) Analog-to-Digital Converter (ADC). This single-input device features a 1:1 Sample-and-Hold (S/H) ratio and an internal or external reference. It offers a sampling rate of up to 125 kSPS. The ADS774KEG4 is housed in a 28-pin PDIP package and supports through-hole mounting. Analog supply voltages can range from -16.5V to 5.5V, with digital supply at 5V. This component is utilized in applications such as industrial automation and data acquisition systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 28-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Number of Bits | 12 |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V, -16.5V ~ 5.5 |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 125k |
| Input Type | Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 28-PDIP |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
