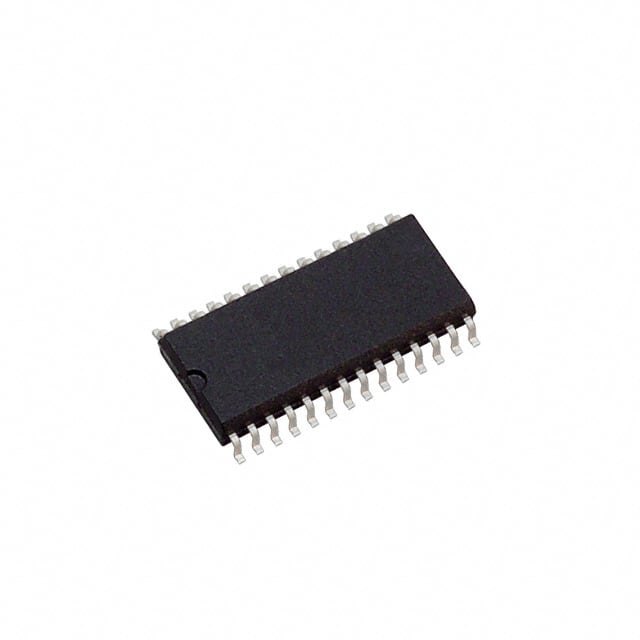

ADS774HIDW
IC ADC 12BIT SAR 28SOICManufacturer: Texas Instruments
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Texas Instruments ADS774HIDW is a 12-bit successive approximation analog-to-digital converter (ADC). Featuring a single input and a 1:1 sample-and-hold to ADC ratio, this device operates with a sampling rate of up to 125kSPS. The ADS774HIDW supports both external and internal reference types and offers flexible analog supply voltages ranging from -16.5V to 5.5V, alongside a 5V digital supply. Its 28-SOIC package is designed for surface-mount applications. This component is widely utilized in industrial automation, medical instrumentation, and test and measurement equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Not For New DesignsPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 28-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V, -16.5V ~ 5.5 |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 125k |
| Input Type | Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 28-SOIC |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
