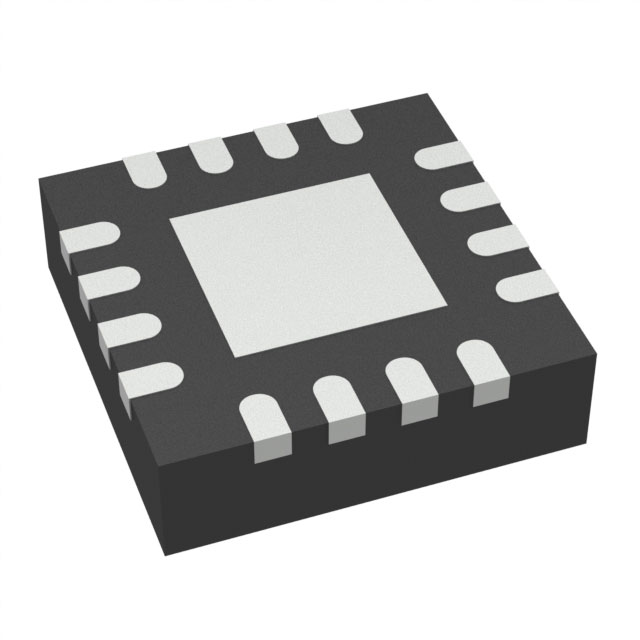

ADS7253C6RTER
PROTOTYPEManufacturer: Texas Instruments
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
12 Bit Analog to Digital Converter 2 Input 2 SAR 16-WQFN (3x3)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Bulk |
| Package / Case | 16-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | S/H-ADC |
| Data Interface | Serial |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply, Analog | 4.5V ~ 5.5V |
| Voltage - Supply, Digital | 1.65V ~ 5.5V |
| Sampling Rate (Per Second) | 1M |
| Input Type | Pseudo-Differential, Single Ended |
| Number of Inputs | 2 |
| Supplier Device Package | 16-WQFN (3x3) |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 2 |
