ADS6122IRHB25
IC ADC 12BIT PIPELINED 32VQFNManufacturer: Texas Instruments
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Texas Instruments ADS6122IRHB25 is a 12-bit pipelined Analog-to-Digital Converter (ADC). This component features a single input channel and a pipelined architecture, achieving a sampling rate of 65 MSPS. The ADS6122IRHB25 offers a 1:1 S/H to ADC ratio and utilizes an internal reference. Data is interfaced via LVDS and parallel formats. The device is housed in a 32-VQFN (5x5) package with an exposed pad for surface mounting and is supplied on tape and reel. It operates within an analog supply voltage range of 3V to 3.6V and a digital supply range of 1.65V to 3.6V, with an operating temperature range of -40°C to 85°C. This ADC is commonly employed in telecommunications, medical imaging, and test and measurement equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |

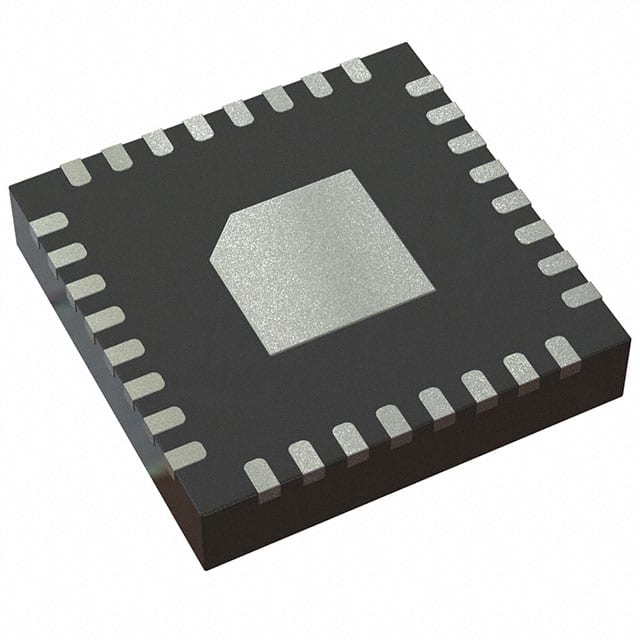

| Package / Case | 32-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | S/H-ADC |
| Data Interface | LVDS - Parallel, Parallel |
| Reference Type | Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 3V ~ 3.6V |
| Voltage - Supply, Digital | 1.65V ~ 3.6V |
| Sampling Rate (Per Second) | 65M |
| Input Type | Differential |
| Number of Inputs | 1 |
| Supplier Device Package | 32-VQFN (5x5) |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
