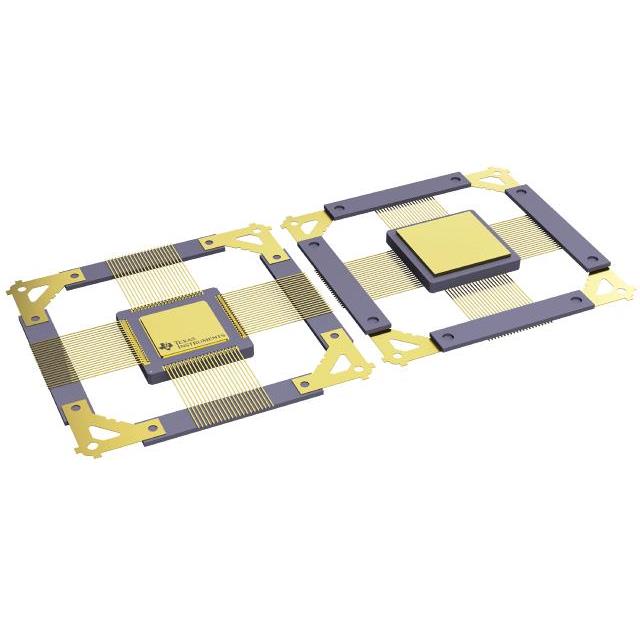

ADS5474HFG/EM
IC ADC 14BIT PIPELINEDManufacturer: Texas Instruments
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Texas Instruments ADS5474HFG-EM is a 14-bit pipelined Analog-to-Digital Converter (ADC) designed for high-speed data acquisition. This device features a single input channel with a sampling rate of 400 MSPS, enabling precise conversion of analog signals into digital data. The pipelined architecture ensures efficient conversion processing. Its differential input type and internal voltage reference contribute to robust signal integrity. The ADS5474HFG-EM offers a parallel LVDS data interface for high-throughput data transfer. Operating across an extended temperature range of -55°C to 125°C, this component is suitable for demanding applications in aerospace, defense, and high-performance test and measurement systems. The device requires analog supply voltages of 3.1V to 3.6V and 5V, and digital supply voltages between 3V and 3.6V. It is supplied in Tray packaging for surface mount applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Package / Case | - |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Configuration | S/H-ADC |
| Data Interface | LVDS - Parallel |
| Reference Type | Internal |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Supply, Analog | 3.1V ~ 3.6V, 5V |
| Voltage - Supply, Digital | 3V ~ 3.6V |
| Sampling Rate (Per Second) | 400M |
| Input Type | Differential |
| Number of Inputs | 1 |
| Supplier Device Package | - |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
