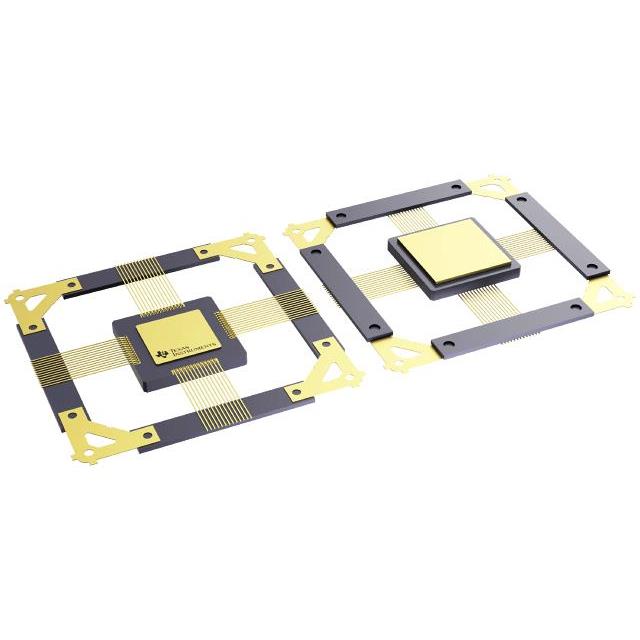

ADS5424HFG/EM
IC ADC 14BIT PIPELINED 52CFPManufacturer: Texas Instruments
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Texas Instruments ADS5424HFG-EM is a 14-bit pipelined analog-to-digital converter designed for high-speed data acquisition. This component features a single-ended analog input with a sampling rate of 105 MSPS, delivering exceptional resolution and accuracy. Its pipelined architecture ensures efficient conversion, making it suitable for demanding applications. The ADS5424HFG-EM offers a parallel data interface, simplifying integration into existing digital systems. Operating from a 5V analog and digital supply, it is housed in a 52-CFP package, suitable for surface mount applications. This converter finds utility in industries requiring precise signal processing, such as telecommunications, test and measurement, and medical imaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Package / Case | - |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Reference Type | Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 105M |
| Input Type | Differential |
| Number of Inputs | 1 |
| Supplier Device Package | 52-CFP |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
