ADS5400MHFSV

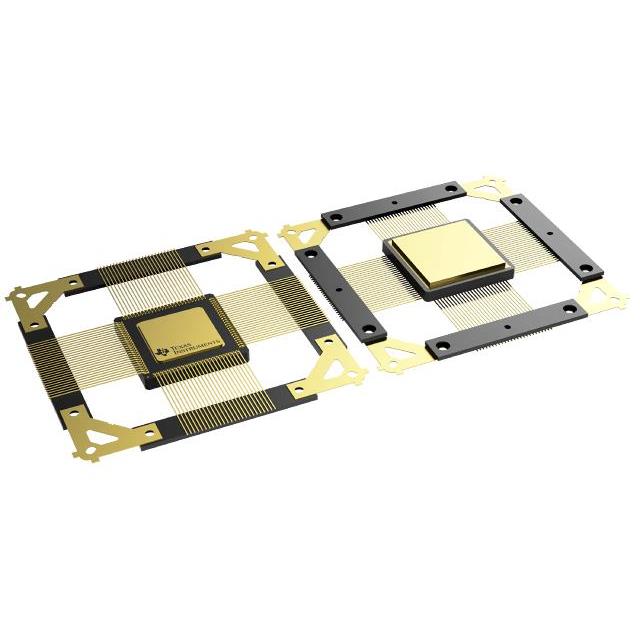

IC ADC 12BIT PIPELINED 100CQFPManufacturer: Texas Instruments
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Texas Instruments ADS5400MHFSV is a 12-bit, 1 Giga-sample per second (GSPS) pipelined Analog-to-Digital Converter (ADC). This device features a single input with a sample-and-hold (S/H) to ADC ratio of 1:1. The ADS5400MHFSV offers flexible reference options, supporting both external and internal references. Its data output is delivered via a parallel LVDS interface. Integrated temperature sensing is included for enhanced monitoring. The component is housed in a 100-pin Ceramic Quad Flat Pack (CQFP) with an exposed pad, suitable for surface mounting. Operating across an industrial temperature range of -40°C to 85°C, this ADC is designed for demanding applications in areas such as high-speed communications, medical imaging, and test and measurement equipment. Analog and digital supply voltage ranges from 3.135V to 3.465V and 5V.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Sensor |
| Packaging | Tray |
| Package / Case | 100-CBQFP Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | S/H-ADC |
| Data Interface | LVDS - Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 3.135V ~ 3.465V, 5V |
| Voltage - Supply, Digital | 3.135V ~ 3.465V |
| Sampling Rate (Per Second) | 1G |
| Input Type | Differential |
| Number of Inputs | 1 |
| Supplier Device Package | 100-CFP |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
