ADS5400HFS/EM

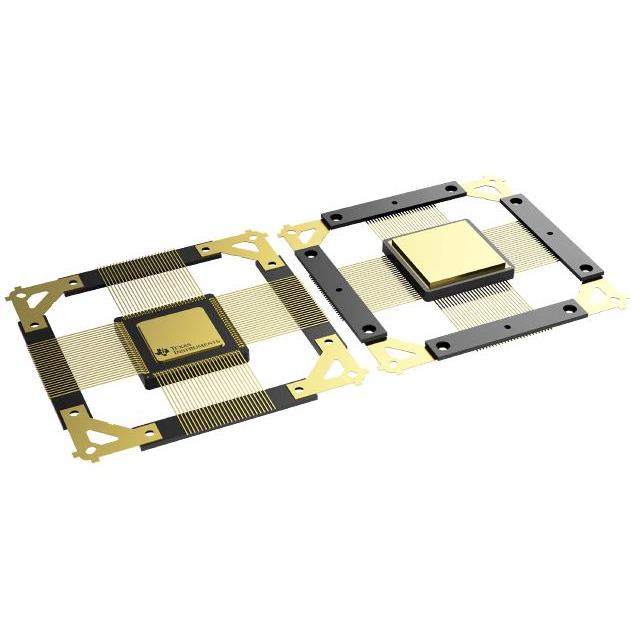

IC ADC 12BIT PIPELINED 100CQFPManufacturer: Texas Instruments
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Texas Instruments Analog to Digital Converter, part number ADS5400HFS-EM, is a 12-bit pipelined ADC. This device features a 1 GSPS sampling rate and supports both external and internal voltage references. The ADS5400HFS-EM offers a differential input and a 1:1 S/H to ADC ratio. Data can be interfaced via LVDS - Parallel or SPI. The component includes an integrated temperature sensor and operates across an industrial temperature range of -55°C to 125°C. Available in a 100-CBQFP Exposed Pad package, its analog and digital supply voltages range from 3.135V to 3.465V, with an additional analog supply option at 5V. This high-speed ADC is commonly utilized in demanding applications within the aerospace and defense, test and measurement, and communications industries.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Sensor |
| Packaging | Tray |
| Package / Case | 100-CBQFP Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | S/H-ADC |
| Data Interface | LVDS - Parallel, SPI |
| Reference Type | External, Internal |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Supply, Analog | 3.135V ~ 3.465V, 5V |
| Voltage - Supply, Digital | 3.135V ~ 3.465V |
| Sampling Rate (Per Second) | 1G |
| Input Type | Differential |
| Number of Inputs | 1 |
| Supplier Device Package | 100-CFP |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
