ADS1672IPAGR
IC ADC 24BIT SIGMA-DELTA 64TQFPManufacturer: Texas Instruments
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More

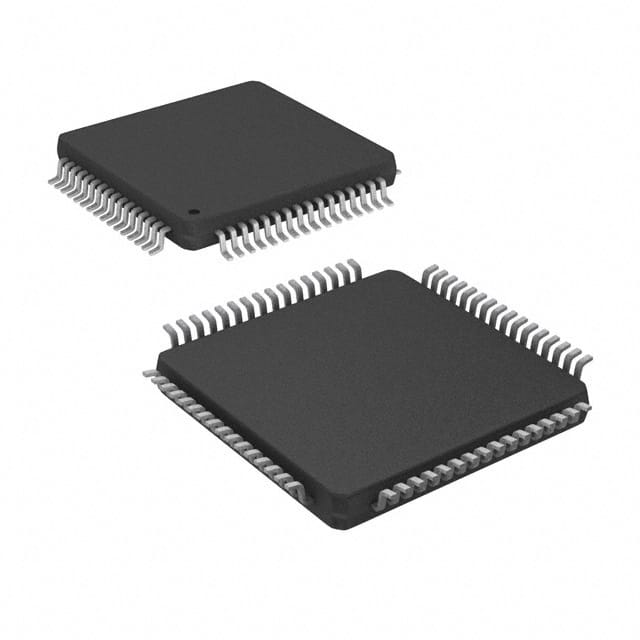

The Texas Instruments ADS1672IPAGR is a 24-bit, single-channel sigma-delta analog-to-digital converter. This component features a high sampling rate of 625 kSPS and supports a differential input type. Data transfer is facilitated via LVDS and SPI serial interfaces. The device operates with analog supply voltages of 5V and digital supply voltages ranging from 2.7V to 3.3V. It is housed in a 64-TQFP (10x10) package suitable for surface mounting. The operating temperature range for the ADS1672IPAGR is -40°C to 85°C. This high-resolution ADC is commonly utilized in applications requiring precise measurement, such as industrial automation, medical instrumentation, and test and measurement equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 64-TQFP |
| Mounting Type | Surface Mount |
| Number of Bits | 24 |
| Configuration | ADC |
| Data Interface | LVDS - Serial, SPI |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 2.7V ~ 3.3V |
| Sampling Rate (Per Second) | 625k |
| Input Type | Differential |
| Number of Inputs | 1 |
| Supplier Device Package | 64-TQFP (10x10) |
| Architecture | Sigma-Delta |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
