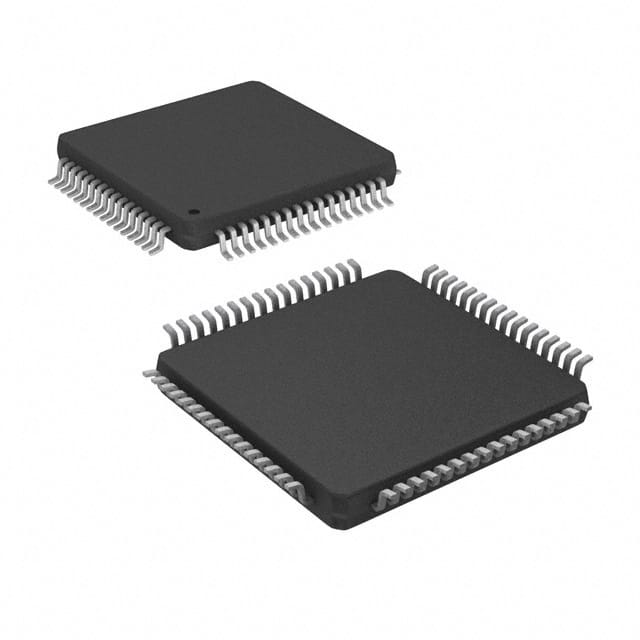

ADS1672IPAG
IC ADC 24BIT SIGMA-DELTA 64TQFPManufacturer: Texas Instruments
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Texas Instruments ADS1672IPAG is a 24-bit, single-channel sigma-delta analog-to-digital converter. This device features a high-precision architecture with a sampling rate of up to 625 kSPS, making it suitable for demanding measurement applications. The ADS1672IPAG offers flexible configuration with both external and internal voltage references. Data output is provided via an LVDS serial interface, compatible with SPI communication protocols. Designed for surface mounting, it is housed in a 64-TQFP (10x10 mm) package. Analog supply voltage is 5V, while digital supply ranges from 2.7V to 3.3V. Operating temperature is specified from -40°C to 85°C. This component finds application in test and measurement equipment, industrial control systems, and high-resolution sensor interfaces.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Package / Case | 64-TQFP |
| Mounting Type | Surface Mount |
| Number of Bits | 24 |
| Configuration | ADC |
| Data Interface | LVDS - Serial, SPI |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 2.7V ~ 3.3V |
| Sampling Rate (Per Second) | 625k |
| Input Type | Differential |
| Number of Inputs | 1 |
| Supplier Device Package | 64-TQFP (10x10) |
| Architecture | Sigma-Delta |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
