ADS1601IPFBR
IC ADC 16BIT SIGMA-DELTA 48TQFPManufacturer: Texas Instruments
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Texas Instruments ADS1601IPFBR is a 16-bit, single-channel sigma-delta analog-to-digital converter. This device features a differential input and supports an impressive sampling rate of up to 1.25 MSPS. The ADS1601IPFBR utilizes both internal and external voltage references for flexibility in design. Its architecture is optimized for high-precision signal acquisition.

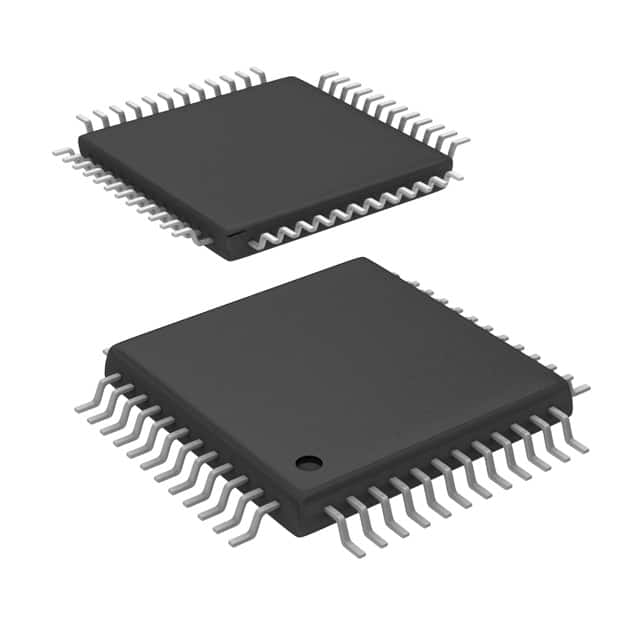

The component is housed in a compact 48-TQFP (7x7) package, suitable for surface mount applications. Analog supply voltage can be 5V, while digital supply operates between 2.7V and 3.3V. Data transfer is managed via an SPI interface. This ADC is well-suited for demanding applications in industrial automation, medical instrumentation, and high-fidelity audio processing where accurate analog signal conversion is critical. It is supplied on tape and reel for automated assembly.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-TQFP |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Configuration | ADC |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 2.7V ~ 3.3V |
| Sampling Rate (Per Second) | 1.25M |
| Input Type | Differential |
| Number of Inputs | 1 |
| Supplier Device Package | 48-TQFP (7x7) |
| Architecture | Sigma-Delta |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
