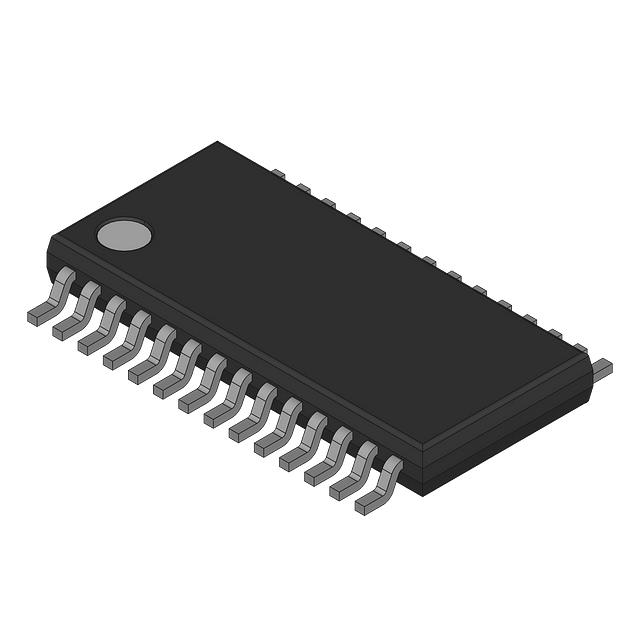

ADS1282IPW-1
ANALOG DATA CONVERTRManufacturer: Texas Instruments
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Texas Instruments ADS1282IPW-1 is a 31-bit, 2-input sigma-delta analog-to-digital converter. This high-precision device offers a sampling rate of up to 4kSPS and features a programmable gain amplifier (PGA) for enhanced signal conditioning. The ADS1282IPW-1 utilizes a differential input type and supports an SPI data interface for efficient communication. It operates with an analog supply voltage of 5V and a digital supply voltage ranging from 1.65V to 3.6V. Housed in a 28-TSSOP package, this component is suitable for surface mounting. Applications for the ADS1282IPW-1 include seismic monitoring, high-precision weighing systems, and medical instrumentation. The operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: Not applicableManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | PGA |
| Packaging | Bulk |
| Package / Case | 28-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 31 |
| Configuration | ADC |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 1.65V ~ 3.6V |
| Sampling Rate (Per Second) | 4k |
| Input Type | Differential |
| Number of Inputs | 2 |
| Supplier Device Package | 28-TSSOP |
| Architecture | Sigma-Delta |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
