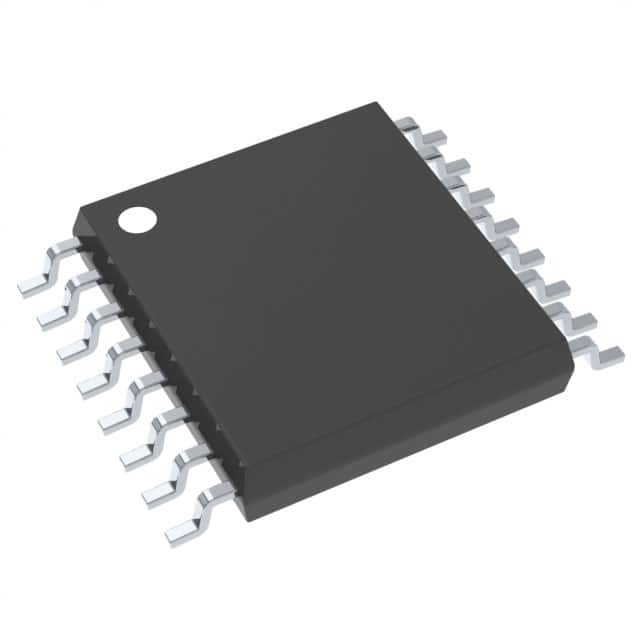

ADS1271IPW
IC ADC 24BIT SIGMA-DELTA 16TSSOPManufacturer: Texas Instruments
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Texas Instruments ADS1271IPW is a 24-bit sigma-delta analog-to-digital converter (ADC). This single-channel device offers a high resolution of 24 bits and a sampling rate of up to 105 kSPS. It features a differential input type and supports external voltage references. The ADC provides a serial peripheral interface (SPI) for data communication. Operating within an analog supply voltage of 5V and a digital supply voltage range of 1.65V to 3.6V, the ADS1271IPW is designed for applications requiring precise analog signal acquisition. Its operating temperature range is -40°C to 105°C. The component is housed in a compact 16-TSSOP (0.173", 4.40mm width) surface-mount package. This device finds application in industrial automation, test and measurement equipment, and medical instrumentation where high-accuracy analog-to-digital conversion is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 16-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 24 |
| Configuration | ADC |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 1.65V ~ 3.6V |
| Sampling Rate (Per Second) | 105k |
| Input Type | Differential |
| Number of Inputs | 1 |
| Supplier Device Package | 16-TSSOP |
| Architecture | Sigma-Delta |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
