ADS1260BQWRHMRQ1
IC ADC 24BIT SIGMA-DELTA 32VQFNManufacturer: Texas Instruments
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More

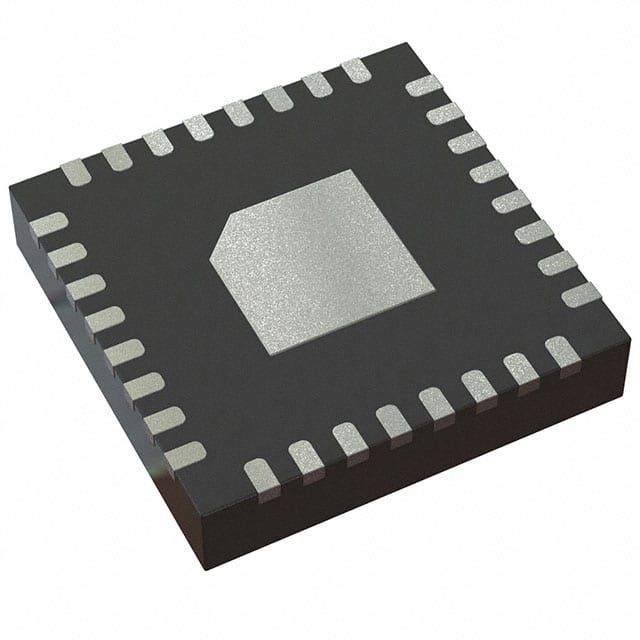

Texas Instruments ADS1260BQWRHMRQ1 is a 24-bit sigma-delta analog-to-digital converter. This component features 10 differential input channels, configurable with an onboard programmable gain amplifier (PGA). Data is communicated via an SPI interface, supporting a sampling rate of up to 40kSPS. The device operates with analog supply voltages ranging from 4.75V to 5.25V and digital supply voltages from 2.7V to 5.25V. It is packaged in a 32-VQFN (5x5) with an exposed pad, suitable for surface mount applications with wettable flanks. Qualified to AEC-Q100, this component is designed for automotive applications. It supports both internal and external voltage references.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | PGA |
| Packaging | Tape & Reel (TR) |
| Package / Case | 32-VFQFN Exposed Pad |
| Mounting Type | Surface Mount, Wettable Flank |
| Number of Bits | 24 |
| Configuration | MUX-PGA-ADC |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply, Analog | 4.75V ~ 5.25V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Sampling Rate (Per Second) | 40k |
| Input Type | Differential |
| Number of Inputs | 10 |
| Supplier Device Package | 32-VQFN (5x5) |
| Architecture | Sigma-Delta |
| Ratio - S/H:ADC | 0:1 |
| Grade | Automotive |
| Number of A/D Converters | 1 |
| Qualification | AEC-Q100 |
