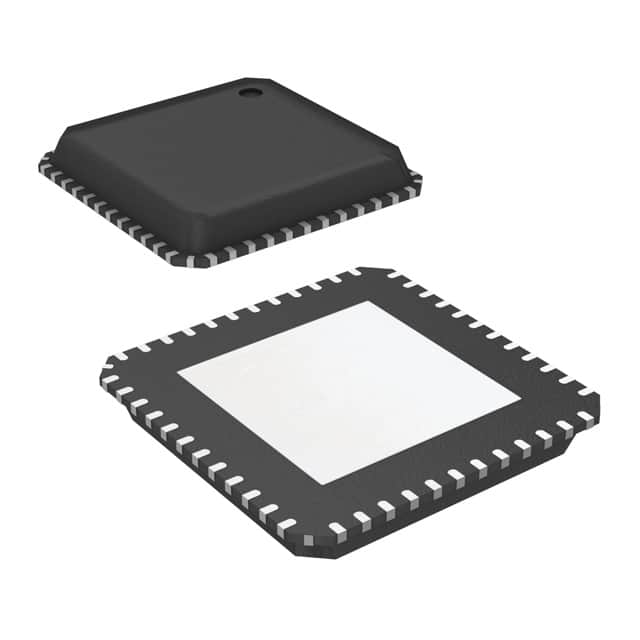

ADS1258IRTCR
IC ADC 24BIT SIGMA-DELTA 48VQFNManufacturer: Texas Instruments
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Texas Instruments ADS1258IRTCR is a 24-bit sigma-delta analog-to-digital converter. This device features a multiplexer, supporting up to 16 single-ended or 8 differential input channels, configurable for a wide range of measurement applications. It operates with an analog supply voltage of 5V and a digital supply from 2.7V to 5.25V, with a sampling rate of up to 125kSPS. The data interface utilizes SPI for communication. This component is designed for high-precision measurement systems, finding application in industrial automation, sensor instrumentation, and scientific data acquisition. The Texas Instruments ADS1258IRTCR is supplied in a 48-VQFN (7x7) package, suitable for surface mount assembly, and operates within an ambient temperature range of -40°C to 105°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 24 |
| Configuration | MUX-ADC |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Sampling Rate (Per Second) | 125k |
| Input Type | Differential, Single Ended |
| Number of Inputs | 8, 16 |
| Supplier Device Package | 48-VQFN (7x7) |
| Architecture | Sigma-Delta |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
