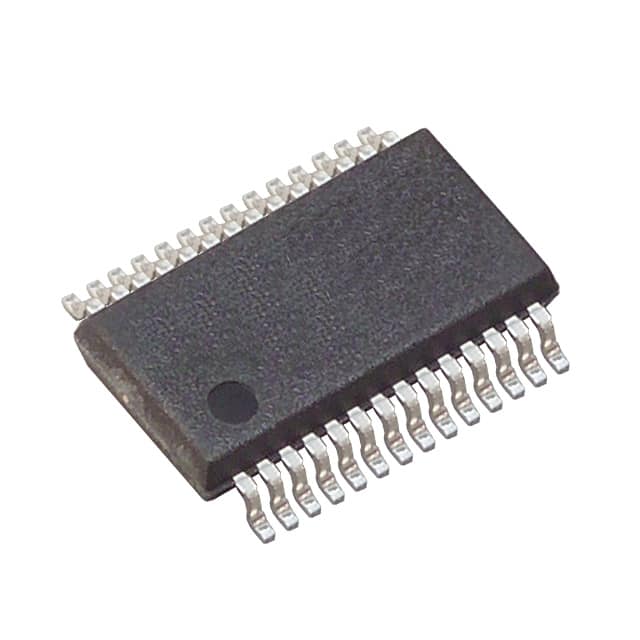

ADS1256IDBT
IC ADC 24BIT SIGMA-DELTA 28SSOPManufacturer: Texas Instruments
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Texas Instruments ADS1256IDBT is a 24-bit, high-precision Analog-to-Digital Converter (ADC) from the Sigma-Delta family. This component features a 4 or 8-channel multiplexer (MUX) with a programmable gain amplifier (PGA), enabling flexible input signal conditioning. The device communicates via a serial peripheral interface (SPI) and offers a sampling rate of up to 30kSPS. Its architecture is optimized for high resolution and accuracy, making it suitable for demanding applications in industrial automation, test and measurement, and medical equipment. The ADS1256IDBT is housed in a 28-SSOP package and operates within a temperature range of -40°C to 85°C, with analog supply voltages of 5V and digital supply voltages ranging from 1.8V to 3.6V. It supports both differential and single-ended input types and requires an external voltage reference.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | PGA |
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-SSOP (0.209"", 5.30mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 24 |
| Configuration | MUX-PGA-ADC |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 1.8V ~ 3.6V |
| Sampling Rate (Per Second) | 30k |
| Input Type | Differential, Single Ended |
| Number of Inputs | 4, 8 |
| Supplier Device Package | 28-SSOP |
| Architecture | Sigma-Delta |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
