ADS124S06BIPBS
PROTOTYPEManufacturer: Texas Instruments
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More

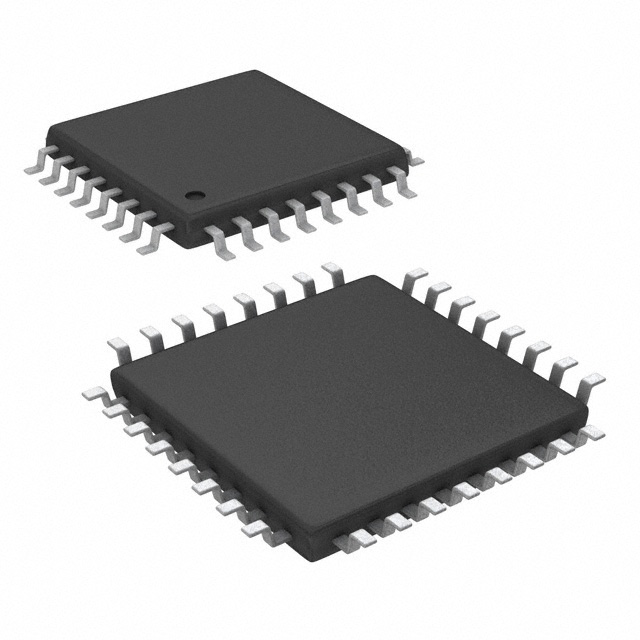

24 Bit Analog to Digital Converter 6 Input 1 Sigma-Delta 32-TQFP (5x5)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | PGA |
| Packaging | Bulk |
| Package / Case | 32-TQFP |
| Mounting Type | Surface Mount |
| Number of Bits | 24 |
| Configuration | MUX-PGA-ADC |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | -50°C ~ 125°C |
| Voltage - Supply, Analog | 1.5V ~ 5.25V, 2.7V ~ 5.25V |
| Voltage - Supply, Digital | 2.7V ~ 3.6V |
| Sampling Rate (Per Second) | 4k |
| Input Type | Differential, Pseudo-Differential, Single Ended |
| Number of Inputs | 6 |
| Supplier Device Package | 32-TQFP (5x5) |
| Architecture | Sigma-Delta |
| Ratio - S/H:ADC | 0:1 |
| Number of A/D Converters | 1 |
