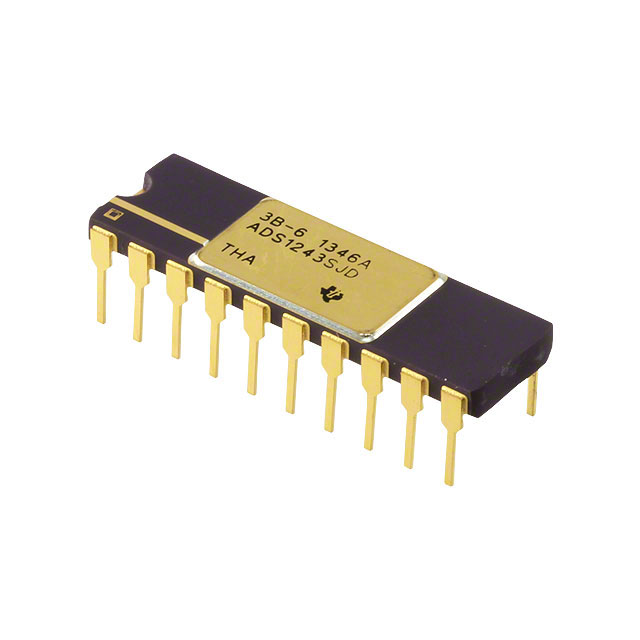

ADS1243SJD
IC ADC 24BIT SIGMA-DELTA 20CDIPManufacturer: Texas Instruments
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Texas Instruments ADS1243SJD is a 24-bit, 8-channel analog-to-digital converter featuring a sigma-delta architecture. This component incorporates a programmable gain amplifier (PGA) and supports both differential and single-ended input types. The SPI data interface facilitates communication with microcontrollers. With a sampling rate of up to 15 kSPS, it is suitable for applications requiring precise measurement. The ADS1243SJD operates with analog supply voltages from 2.7V to 3.3V or 5V, and digital supply voltages from 2.7V to 5.25V. It is housed in a 20-CDIP package with a window, designed for through-hole mounting. Operating temperature range is -55°C to 210°C. This device finds application in industrial instrumentation and precision measurement systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | PGA |
| Packaging | Tube |
| Package / Case | 20-CDIP (0.300"", 7.62mm) Window |
| Mounting Type | Through Hole |
| Number of Bits | 24 |
| Configuration | MUX-PGA-ADC |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | -55°C ~ 210°C |
| Voltage - Supply, Analog | 2.7V ~ 3.3V, 5V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Sampling Rate (Per Second) | 15 |
| Input Type | Differential, Single Ended |
| Number of Inputs | 8 |
| Supplier Device Package | 20-CDIP |
| Architecture | Sigma-Delta |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
