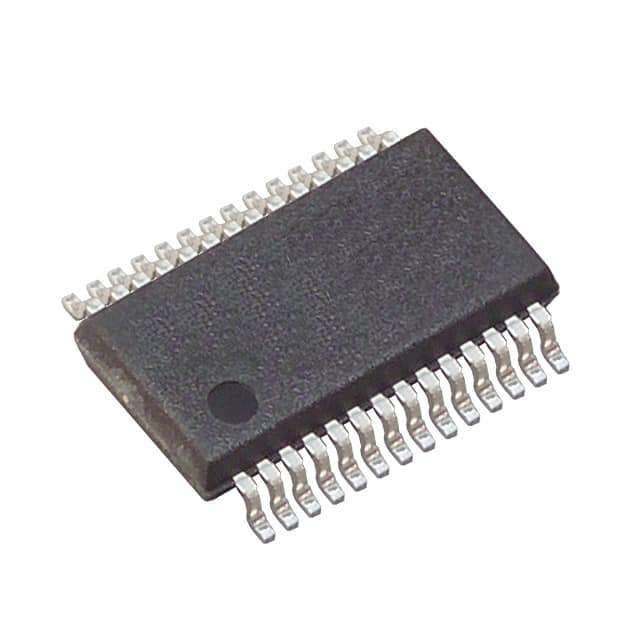

ADS1241E
IC ADC 24BIT SIGMA-DELTA 28SSOPManufacturer: Texas Instruments
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Texas Instruments ADS1241E is a 24-bit, 8-channel analog-to-digital converter (ADC) featuring a Sigma-Delta architecture. This component offers a high-resolution conversion with selectable input types, supporting both differential and single-ended signals. The integrated programmable gain amplifier (PGA) allows for flexible signal conditioning. Data is communicated via a SPI serial interface. The ADS1241E is suitable for applications requiring precise measurement, including industrial automation, sensor instrumentation, and medical equipment. It operates from analog supply voltages of 2.7V to 3.3V or 5V, and digital supply voltages from 2.7V to 5.25V. The device is housed in a 28-SSOP package and operates within a temperature range of -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | PGA |
| Packaging | Tube |
| Package / Case | 28-SSOP (0.209"", 5.30mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 24 |
| Configuration | MUX-PGA-ADC |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 3.3V, 5V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Sampling Rate (Per Second) | 15 |
| Input Type | Differential, Single Ended |
| Number of Inputs | 8 |
| Supplier Device Package | 28-SSOP |
| Architecture | Sigma-Delta |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
