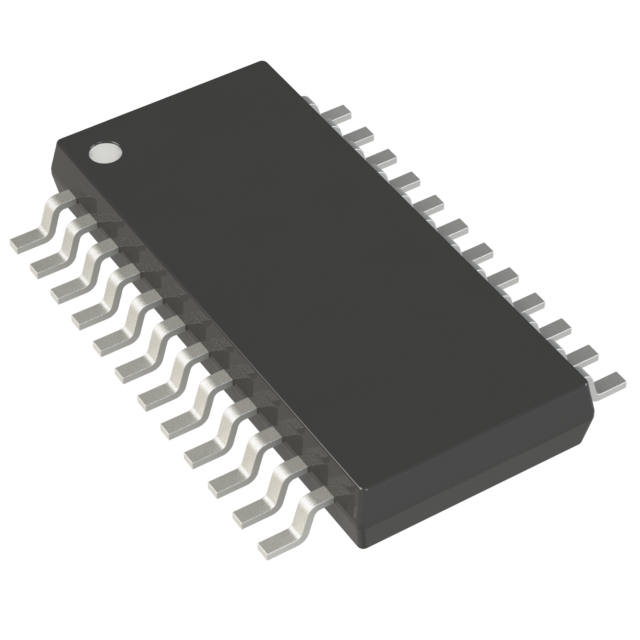

ADS1240E/1KG4
IC ADC 24BIT SIGMA-DELTA 24SSOPManufacturer: Texas Instruments
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Texas Instruments ADS1240E-1KG4 is a 24-bit, 4-channel delta-sigma analog-to-digital converter. This device features a built-in programmable gain amplifier (PGA), enabling flexible input signal conditioning. The ADS1240E-1KG4 operates with a sampling rate of up to 15 kSPS and utilizes an SPI serial interface for data transfer. It supports both differential and single-ended input types and requires an external reference. The converter is housed in a 24-SSOP package, suitable for surface mounting. This component is designed for applications requiring high-resolution analog measurements, including industrial instrumentation and measurement equipment. Operating voltage ranges are 2.7V to 3.3V for analog and 2.7V to 5.25V for digital supplies. The operating temperature range is -40°C to 85°C. This part is supplied in a Tape & Reel (TR) package.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | PGA |
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-SSOP (0.209"", 5.30mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 24 |
| Configuration | MUX-PGA-ADC |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 3.3V, 5V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Sampling Rate (Per Second) | 15 |
| Input Type | Differential, Single Ended |
| Number of Inputs | 4 |
| Supplier Device Package | 24-SSOP |
| Architecture | Sigma-Delta |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
