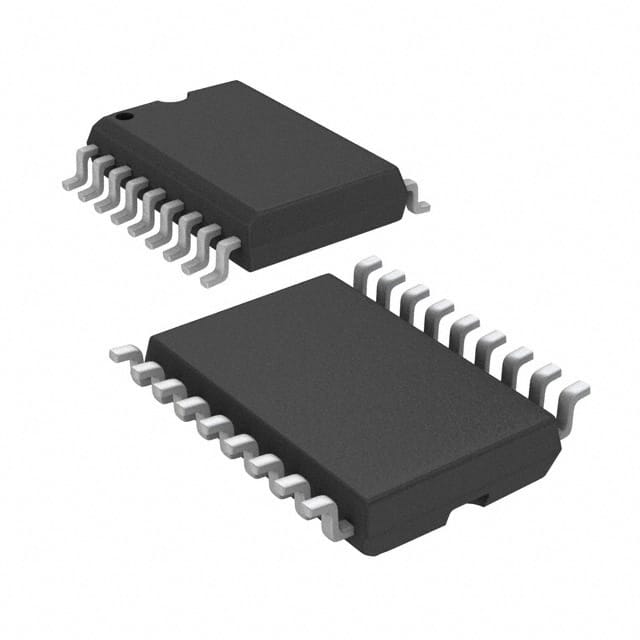

ADS1210U
IC ADC 24BIT SIGMA-DELTA 18SOICManufacturer: Texas Instruments
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Texas Instruments ADS1210U is a 24-bit, highly accurate, sigma-delta analog-to-digital converter (ADC). This component features a single-channel, differential input with a programmable gain amplifier (PGA), enabling precise measurement of low-level signals. The SPI data interface facilitates straightforward integration into digital systems. With an internal or external reference and a sampling rate of up to 16kSPS, the ADS1210U is well-suited for applications requiring high resolution, such as industrial instrumentation, sensor measurement, and data acquisition systems operating within a -40°C to 85°C temperature range. It is supplied in an 18-SOIC (0.295", 7.50mm Width) package and operates with analog and digital supply voltages of 5V.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | PGA |
| Packaging | Tube |
| Package / Case | 18-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 24 |
| Configuration | PGA-ADC |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 16k |
| Input Type | Differential |
| Number of Inputs | 1 |
| Supplier Device Package | 8-SOIC |
| Architecture | Sigma-Delta |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
