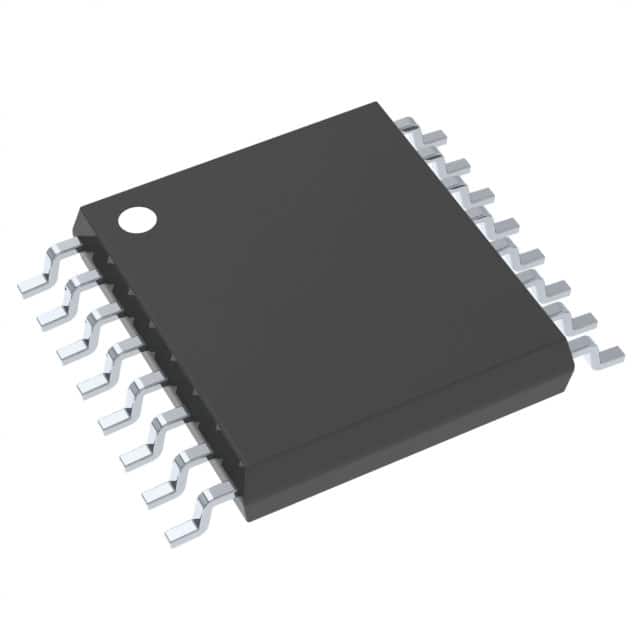

ADS1146IPWR
IC ADC 16BIT SIGMA-DELTA 16TSSOPManufacturer: Texas Instruments
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Texas Instruments ADS1146IPWR is a 16-bit, single-channel analog-to-digital converter (ADC) from the Sigma-Delta family. Featuring an integrated programmable gain amplifier (PGA), this component offers flexible input configurations supporting both differential and single-ended signals. Data is communicated via a serial peripheral interface (SPI). The device operates within an analog and digital supply voltage range of 2.7V to 5.25V and boasts a sampling rate of up to 2kSPS. Its 16-TSSOP (0.173", 4.40mm width) package is designed for surface mounting and is supplied on tape and reel. The ADS1146IPWR is suitable for applications in industrial automation, test and measurement, and portable instrumentation, operating from -40°C to 105°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | PGA |
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Configuration | MUX-PGA-ADC |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply, Analog | 2.7V ~ 5.25V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Sampling Rate (Per Second) | 2k |
| Input Type | Differential, Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 16-TSSOP |
| Architecture | Sigma-Delta |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
