ADS1131IDRNLC
PROTOTYPEManufacturer: Texas Instruments
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More

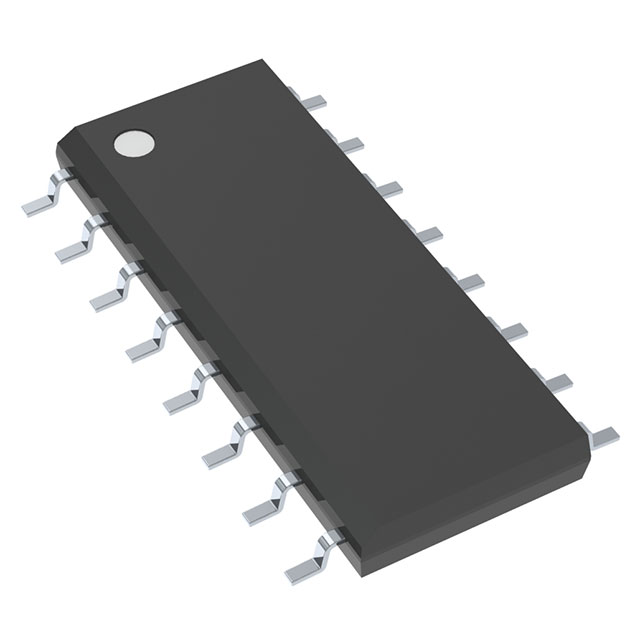

18 Bit Analog to Digital Converter 1 Input 1 Sigma-Delta 16-SOIC
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Internal Oscillator, PGA |
| Packaging | Bulk |
| Package / Case | 16-SOIC (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 18 |
| Configuration | PGA-ADC |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 3V ~ 5.3V |
| Voltage - Supply, Digital | 3V ~ 5.3V |
| Sampling Rate (Per Second) | 80 |
| Input Type | Differential, Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 16-SOIC |
| Architecture | Sigma-Delta |
| Ratio - S/H:ADC | 0:1 |
| Number of A/D Converters | 1 |
